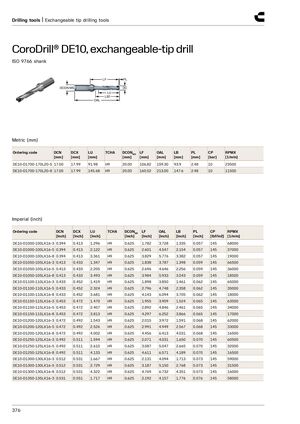

Drilling tools | Exchangeable tip drilling tools CoroDrill® DE10, exchangeable-tip drill ISO 9766 shank LF PL DCON MS DC LU LB1 OAL Metric (mm) Ordering code DCN DCX LU TCHA DCONMS LF OAL LB PL CP RPMX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [bar] [1/min] DE10-D1700-170L20-5 17.00 17.99 91.98 H9 20.00 106.82 159.30 93.9 2.48 10 23500 DE10-D1700-170L20-8 17.00 17.99 145.68 H9 20.00 160.52 213.00 147.6 2.48 10 11500 Imperial (inch) Ordering code DCN DCX LU TCHA DCONMS LF OAL LB PL CP RPMX [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [lbf/in2] [1/min] DE10-D1000-100LX16-3 0.394 0.413 1.296 H9 0.625 1.782 3.728 1.335 0.057 145 68000 DE10-D1000-100LX16-5 0.394 0.413 2.122 H9 0.625 2.601 4.547 2.154 0.057 145 37000 DE10-D1000-100LX16-8 0.394 0.413 3.361 H9 0.625 3.829 5.776 3.382 0.057 145 19000 DE10-D1050-105LX16-3 0.413 0.433 1.347 H9 0.625 1.838 3.787 1.398 0.059 145 66500 DE10-D1050-105LX16-5 0.413 0.433 2.205 H9 0.625 2.696 4.646 2.256 0.059 145 36000 DE10-D1050-105LX16-8 0.413 0.433 3.493 H9 0.625 3.984 5.933 3.543 0.059 145 18500 DE10-D1100-110LX16-3 0.433 0.452 1.419 H9 0.625 1.898 3.850 1.461 0.062 145 65000 DE10-D1100-110LX16-5 0.433 0.452 2.324 H9 0.625 2.796 4.748 2.358 0.062 145 35000 DE10-D1100-110LX16-8 0.433 0.452 3.681 H9 0.625 4.143 6.094 3.705 0.062 145 18000 DE10-D1150-115LX16-3 0.453 0.472 1.470 H9 0.625 1.955 3.909 1.524 0.065 145 63500 DE10-D1150-115LX16-5 0.453 0.472 2.407 H9 0.625 2.892 4.846 2.461 0.065 145 34000 DE10-D1150-115LX16-8 0.453 0.472 3.813 H9 0.625 4.297 6.252 3.866 0.065 145 17000 DE10-D1200-120LX16-3 0.472 0.492 1.543 H9 0.625 2.015 3.972 1.591 0.068 145 62000 DE10-D1200-120LX16-5 0.472 0.492 2.526 H9 0.625 2.991 4.949 2.567 0.068 145 33000 DE10-D1200-120LX16-8 0.472 0.492 4.002 H9 0.625 4.456 6.413 4.031 0.068 145 16500 DE10-D1250-125LX16-3 0.492 0.511 1.594 H9 0.625 2.071 4.031 1.650 0.070 145 60500 DE10-D1250-125LX16-5 0.492 0.511 2.610 H9 0.625 3.087 5.047 2.665 0.070 145 32000 DE10-D1250-125LX16-8 0.492 0.511 4.133 H9 0.625 4.611 6.571 4.189 0.070 145 16500 DE10-D1300-130LX16-3 0.512 0.531 1.667 H9 0.625 2.131 4.094 1.713 0.073 145 59000 DE10-D1300-130LX16-5 0.512 0.531 2.729 H9 0.625 3.187 5.150 2.768 0.073 145 31500 DE10-D1300-130LX16-8 0.512 0.531 4.322 H9 0.625 4.769 6.732 4.351 0.073 145 16000 DE10-D1350-135LX16-3 0.531 0.551 1.717 H9 0.625 2.192 4.157 1.776 0.076 145 58000 376
