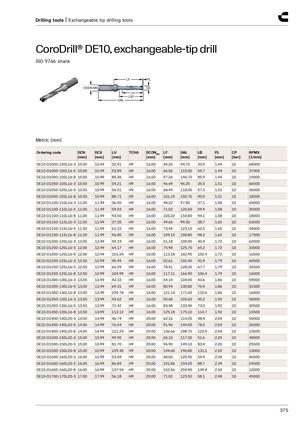

Drilling tools | Exchangeable tip drilling tools CoroDrill® DE10, exchangeable-tip drill​​ ISO 9766 shank LF PL DCON MS DC LU LB1 OAL Metric (mm) Ordering code DCN DCX LU TCHA DCONMS LF OAL LB PL CP RPMX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [bar] [1/min] DE10-D1000-100L16-3 10.00 10.49 32.91 H9 16.00 45.26 94.70 33.9 1.44 10 68000 DE10-D1000-100L16-5 10.00 10.49 53.89 H9 16.00 66.06 115.50 54.7 1.44 10 37000 DE10-D1000-100L16-8 10.00 10.49 85.36 H9 16.00 97.26 146.70 85.9 1.44 10 19000 DE10-D1050-105L16-3 10.50 10.99 34.21 H9 16.00 46.69 96.20 35.5 1.51 10 66500 DE10-D1050-105L16-5 10.50 10.99 56.01 H9 16.00 68.49 118.00 57.3 1.51 10 36000 DE10-D1050-105L16-8 10.50 10.99 88.71 H9 16.00 101.19 150.70 90.0 1.51 10 18500 DE10-D1100-110L16-3 11.00 11.49 36.05 H9 16.00 48.22 97.80 37.1 1.58 10 65000 DE10-D1100-110L16-5 11.00 11.49 59.03 H9 16.00 71.02 120.60 59.9 1.58 10 35000 DE10-D1100-110L16-8 11.00 11.49 93.50 H9 16.00 105.22 154.80 94.1 1.58 10 18000 DE10-D1150-115L16-3 11.50 11.99 37.35 H9 16.00 49.65 99.30 38.7 1.65 10 63500 DE10-D1150-115L16-5 11.50 11.99 61.15 H9 16.00 73.45 123.10 62.5 1.65 10 34000 DE10-D1150-115L16-8 11.50 11.99 96.85 H9 16.00 109.15 158.80 98.2 1.65 10 17500 DE10-D1200-120L16-3 12.00 12.49 39.19 H9 16.00 51.18 100.90 40.4 1.72 10 62000 DE10-D1200-120L16-5 12.00 12.49 64.17 H9 16.00 75.98 125.70 65.2 1.72 10 33000 DE10-D1200-120L16-8 12.00 12.49 101.64 H9 16.00 113.18 162.90 102.4 1.72 10 16500 DE10-D1250-125L16-3 12.50 12.99 40.49 H9 16.00 52.61 102.40 41.9 1.79 10 60500 DE10-D1250-125L16-5 12.50 12.99 66.29 H9 16.00 78.41 128.20 67.7 1.79 10 32500 DE10-D1250-125L16-8 12.50 12.99 104.99 H9 16.00 117.11 166.90 106.4 1.79 10 16000 DE10-D1300-130L16-3 13.00 13.49 42.33 H9 16.00 54.14 104.00 43.6 1.86 10 59000 DE10-D1300-130L16-5 13.00 13.49 69.31 H9 16.00 80.94 130.80 70.4 1.86 10 31500 DE10-D1300-130L16-8 13.00 13.49 109.78 H9 16.00 121.14 171.00 110.6 1.86 10 16000 DE10-D1350-135L16-3 13.50 13.99 43.62 H9 16.00 55.68 105.60 45.2 1.92 10 58000 DE10-D1350-135L16-5 13.50 13.99 71.42 H9 16.00 83.48 133.40 73.0 1.92 10 30500 DE10-D1350-135L16-8 13.50 13.99 113.12 H9 16.00 125.18 175.10 114.7 1.92 10 15500 DE10-D1400-140L20-3 14.00 14.99 46.74 H9 20.00 62.16 114.20 48.4 2.04 10 50000 DE10-D1400-140L20-5 14.00 14.99 76.54 H9 20.00 91.96 144.00 78.2 2.04 10 26500 DE10-D1400-140L20-8 14.00 14.99 121.24 H9 20.00 136.66 188.70 122.9 2.04 10 13500 DE10-D1500-150L20-3 15.00 15.99 49.90 H9 20.00 65.10 117.30 51.6 2.20 10 48000 DE10-D1500-150L20-5 15.00 15.99 81.70 H9 20.00 96.90 149.10 83.4 2.20 10 25500 DE10-D1500-150L20-8 15.00 15.99 129.40 H9 20.00 144.60 196.80 131.1 2.20 10 13000 DE10-D1600-160L20-3 16.00 16.99 53.04 H9 20.00 68.06 120.40 54.9 2.34 10 46500 DE10-D1600-160L20-5 16.00 16.99 86.84 H9 20.00 101.86 154.20 88.7 2.34 10 24500 DE10-D1600-160L20-8 16.00 16.99 137.54 H9 20.00 152.56 204.90 139.4 2.34 10 12000 DE10-D1700-170L20-3 17.00 17.99 56.18 H9 20.00 71.02 123.50 58.1 2.48 10 45000 ​ 375
