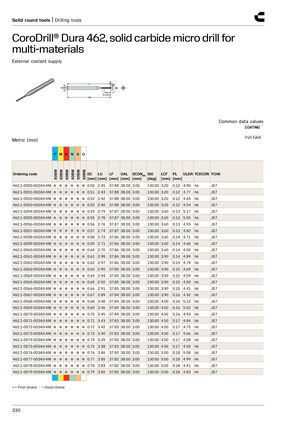

Круглые цельные инструменты | Сверлильные инструменты
CoroDrill® Dura 462, цельнокарбидное микросверло для универсальной обработки
Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0050-002A0-XM | 0.50 | 2.45 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.90 | h6 | JS7 | |
| 462.1-0051-002A0-XM | 0.51 | 2.43 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.77 | h6 | JS7 | |
| 462.1-0052-002A0-XM | 0.52 | 2.42 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.65 | h6 | JS7 | |
| 462.1-0053-002A0-XM | 0.53 | 2.40 | 37.88 | 38.00 | 3.00 | 130.00 | 3.20 | 0.12 | 4.54 | h6 | JS7 | |
| 462.1-0054-002A0-XM | 0.54 | 2.79 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 5.17 | h6 | JS7 | |
| 462.1-0055-002A0-XM | 0.55 | 2.78 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 5.05 | h6 | JS7 | |
| 462.1-0056-002A0-XM | 0.56 | 2.76 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 4.93 | h6 | JS7 | |
| 462.1-0057-002A0-XM | 0.57 | 2.74 | 37.87 | 38.00 | 3.00 | 130.00 | 3.60 | 0.13 | 4.82 | h6 | JS7 | |
| 462.1-0058-002A0-XM | 0.58 | 2.73 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.71 | h6 | JS7 | |
| 462.1-0059-002A0-XM | 0.59 | 2.71 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.60 | h6 | JS7 | |
| 462.1-0060-002A0-XM | 0.60 | 2.70 | 37.86 | 38.00 | 3.00 | 130.00 | 3.60 | 0.14 | 4.50 | h6 | JS7 | |
| 462.1-0061-002A0-XM | 0.61 | 2.98 | 37.86 | 38.00 | 3.00 | 130.00 | 3.90 | 0.14 | 4.89 | h6 | JS7 | |
| 462.1-0062-002A0-XM | 0.62 | 2.97 | 37.86 | 38.00 | 3.00 | 130.00 | 3.90 | 0.14 | 4.79 | h6 | JS7 | |
| 462.1-0063-002A0-XM | 0.63 | 2.95 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.69 | h6 | JS7 | |
| 462.1-0064-002A0-XM | 0.64 | 2.94 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.59 | h6 | JS7 | |
| 462.1-0065-002A0-XM | 0.65 | 2.92 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.50 | h6 | JS7 | |
| 462.1-0066-002A0-XM | 0.66 | 2.91 | 37.85 | 38.00 | 3.00 | 130.00 | 3.90 | 0.15 | 4.41 | h6 | JS7 | |
| 462.1-0067-002A0-XM | 0.67 | 2.89 | 37.84 | 38.00 | 3.00 | 130.00 | 3.90 | 0.16 | 4.32 | h6 | JS7 | |
| 462.1-0068-003A0-XM | 0.68 | 3.48 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 5.12 | h6 | JS7 | |
| 462.1-0069-003A0-XM | 0.69 | 3.46 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 5.02 | h6 | JS7 | |
| 462.1-0070-003A0-XM | 0.70 | 3.45 | 37.84 | 38.00 | 3.00 | 130.00 | 4.50 | 0.16 | 4.93 | h6 | JS7 | |
| 462.1-0071-003A0-XM | 0.71 | 3.43 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.84 | h6 | JS7 | |
| 462.1-0072-003A0-XM | 0.72 | 3.42 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.75 | h6 | JS7 | |
| 462.1-0073-003A0-XM | 0.73 | 3.40 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.66 | h6 | JS7 | |
| 462.1-0074-003A0-XM | 0.74 | 3.39 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.58 | h6 | JS7 | |
| 462.1-0075-003A0-XM | 0.75 | 3.38 | 37.83 | 38.00 | 3.00 | 130.00 | 4.50 | 0.17 | 4.50 | h6 | JS7 | |
| 462.1-0076-003A0-XM | 0.76 | 3.86 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 5.08 | h6 | JS7 | |
| 462.1-0077-003A0-XM | 0.77 | 3.85 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.99 | h6 | JS7 | |
| 462.1-0078-003A0-XM | 0.78 | 3.83 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.91 | h6 | JS7 | |
| 462.1-0079-003A0-XM | 0.79 | 3.82 | 37.82 | 38.00 | 3.00 | 130.00 | 5.00 | 0.18 | 4.83 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
