Круглые цельные инструменты | Сверлильные инструменты

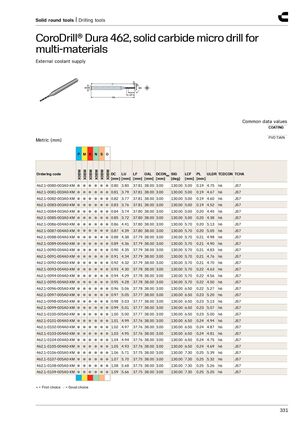

CoroDrill® Dura 462, цельнокарбидное микросверло для универсальной обработки
Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0080-003A0-XM | 0.80 | 3.80 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.75 | h6 | JS7 | |
| 462.1-0081-003A0-XM | 0.81 | 3.79 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.67 | h6 | JS7 | |
| 462.1-0082-003A0-XM | 0.82 | 3.77 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.60 | h6 | JS7 | |
| 462.1-0083-003A0-XM | 0.83 | 3.76 | 37.81 | 38.00 | 3.00 | 130.00 | 5.00 | 0.19 | 4.52 | h6 | JS7 | |
| 462.1-0084-003A0-XM | 0.84 | 3.74 | 37.80 | 38.00 | 3.00 | 130.00 | 5.00 | 0.20 | 4.45 | h6 | JS7 | |
| 462.1-0085-003A0-XM | 0.85 | 3.72 | 37.80 | 38.00 | 3.00 | 130.00 | 5.00 | 0.20 | 4.38 | h6 | JS7 | |
| 462.1-0086-004A0-XM | 0.86 | 4.41 | 37.80 | 38.00 | 3.00 | 130.00 | 5.70 | 0.20 | 5.13 | h6 | JS7 | |
| 462.1-0087-004A0-XM | 0.87 | 4.39 | 37.80 | 38.00 | 3.00 | 130.00 | 5.70 | 0.20 | 5.05 | h6 | JS7 | |
| 462.1-0088-004A0-XM | 0.88 | 4.38 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.98 | h6 | JS7 | |
| 462.1-0089-004A0-XM | 0.89 | 4.36 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.90 | h6 | JS7 | |
| 462.1-0090-004A0-XM | 0.90 | 4.35 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.83 | h6 | JS7 | |
| 462.1-0091-004A0-XM | 0.91 | 4.34 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.76 | h6 | JS7 | |
| 462.1-0092-004A0-XM | 0.92 | 4.32 | 37.79 | 38.00 | 3.00 | 130.00 | 5.70 | 0.21 | 4.70 | h6 | JS7 | |
| 462.1-0093-004A0-XM | 0.93 | 4.30 | 37.78 | 38.00 | 3.00 | 130.00 | 5.70 | 0.22 | 4.63 | h6 | JS7 | |
| 462.1-0094-004A0-XM | 0.94 | 4.29 | 37.78 | 38.00 | 3.00 | 130.00 | 5.70 | 0.22 | 4.56 | h6 | JS7 | |
| 462.1-0095-004A0-XM | 0.95 | 4.28 | 37.78 | 38.00 | 3.00 | 130.00 | 5.70 | 0.22 | 4.50 | h6 | JS7 | |
| 462.1-0096-005A0-XM | 0.96 | 5.06 | 37.78 | 38.00 | 3.00 | 130.00 | 6.50 | 0.22 | 5.27 | h6 | JS7 | |
| 462.1-0097-005A0-XM | 0.97 | 5.05 | 37.77 | 38.00 | 3.00 | 130.00 | 6.50 | 0.23 | 5.20 | h6 | JS7 | |
| 462.1-0098-005A0-XM | 0.98 | 5.03 | 37.77 | 38.00 | 3.00 | 130.00 | 6.50 | 0.23 | 5.13 | h6 | JS7 | |
| 462.1-0099-005A0-XM | 0.99 | 5.01 | 37.77 | 38.00 | 3.00 | 130.00 | 6.50 | 0.23 | 5.07 | h6 | JS7 | |
| 462.1-0100-005A0-XM | 1.00 | 5.00 | 37.77 | 38.00 | 3.00 | 130.00 | 6.50 | 0.23 | 5.00 | h6 | JS7 | |
| 462.1-0101-004A0-XM | 1.01 | 4.99 | 37.76 | 38.00 | 3.00 | 130.00 | 6.50 | 0.24 | 4.94 | h6 | JS7 | |
| 462.1-0102-004A0-XM | 1.02 | 4.97 | 37.76 | 38.00 | 3.00 | 130.00 | 6.50 | 0.24 | 4.87 | h6 | JS7 | |
| 462.1-0103-004A0-XM | 1.03 | 4.95 | 37.76 | 38.00 | 3.00 | 130.00 | 6.50 | 0.24 | 4.81 | h6 | JS7 | |
| 462.1-0104-004A0-XM | 1.04 | 4.94 | 37.76 | 38.00 | 3.00 | 130.00 | 6.50 | 0.24 | 4.75 | h6 | JS7 | |
| 462.1-0105-004A0-XM | 1.05 | 4.93 | 37.76 | 38.00 | 3.00 | 130.00 | 6.50 | 0.24 | 4.69 | h6 | JS7 | |
| 462.1-0106-005A0-XM | 1.06 | 5.71 | 37.75 | 38.00 | 3.00 | 130.00 | 7.30 | 0.25 | 5.39 | h6 | JS7 | |
| 462.1-0107-005A0-XM | 1.07 | 5.70 | 37.75 | 38.00 | 3.00 | 130.00 | 7.30 | 0.25 | 5.32 | h6 | JS7 | |
| 462.1-0108-005A0-XM | 1.08 | 5.68 | 37.75 | 38.00 | 3.00 | 130.00 | 7.30 | 0.25 | 5.26 | h6 | JS7 | |
| 462.1-0109-005A0-XM | 1.09 | 5.66 | 37.75 | 38.00 | 3.00 | 130.00 | 7.30 | 0.25 | 5.20 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
