Круглые цельные инструменты | Сверлильные инструменты

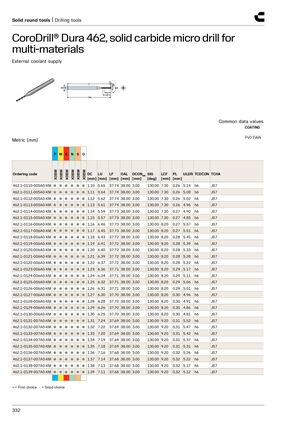

CoroDrill® Dura 462, цельнокарбидное микросверло для универсальной обработки
Подвод СОЖ снаружи
Основные параметры
Покрытие: PVD TiAlN
| Артикул | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0110-005A0-XM | 1.10 | 5.65 | 37.74 | 38.00 | 3.00 | 130.00 | 7.30 | 0.26 | 5.14 | h6 | JS7 | |
| 462.1-0111-005A0-XM | 1.11 | 5.64 | 37.74 | 38.00 | 3.00 | 130.00 | 7.30 | 0.26 | 5.08 | h6 | JS7 | |
| 462.1-0112-005A0-XM | 1.12 | 5.62 | 37.74 | 38.00 | 3.00 | 130.00 | 7.30 | 0.26 | 5.02 | h6 | JS7 | |
| 462.1-0113-005A0-XM | 1.13 | 5.61 | 37.74 | 38.00 | 3.00 | 130.00 | 7.30 | 0.26 | 4.96 | h6 | JS7 | |
| 462.1-0114-005A0-XM | 1.14 | 5.59 | 37.73 | 38.00 | 3.00 | 130.00 | 7.30 | 0.27 | 4.90 | h6 | JS7 | |
| 462.1-0115-005A0-XM | 1.15 | 5.57 | 37.73 | 38.00 | 3.00 | 130.00 | 7.30 | 0.27 | 4.85 | h6 | JS7 | |
| 462.1-0116-006A0-XM | 1.16 | 6.46 | 37.73 | 38.00 | 3.00 | 130.00 | 8.20 | 0.27 | 5.57 | h6 | JS7 | |
| 462.1-0117-006A0-XM | 1.17 | 6.45 | 37.73 | 38.00 | 3.00 | 130.00 | 8.20 | 0.27 | 5.51 | h6 | JS7 | |
| 462.1-0118-006A0-XM | 1.18 | 6.43 | 37.72 | 38.00 | 3.00 | 130.00 | 8.20 | 0.28 | 5.45 | h6 | JS7 | |
| 462.1-0119-006A0-XM | 1.19 | 6.41 | 37.72 | 38.00 | 3.00 | 130.00 | 8.20 | 0.28 | 5.39 | h6 | JS7 | |
| 462.1-0120-006A0-XM | 1.20 | 6.40 | 37.72 | 38.00 | 3.00 | 130.00 | 8.20 | 0.28 | 5.33 | h6 | JS7 | |
| 462.1-0121-006A0-XM | 1.21 | 6.39 | 37.72 | 38.00 | 3.00 | 130.00 | 8.20 | 0.28 | 5.28 | h6 | JS7 | |
| 462.1-0122-006A0-XM | 1.22 | 6.37 | 37.72 | 38.00 | 3.00 | 130.00 | 8.20 | 0.28 | 5.22 | h6 | JS7 | |
| 462.1-0123-006A0-XM | 1.23 | 6.36 | 37.71 | 38.00 | 3.00 | 130.00 | 8.20 | 0.29 | 5.17 | h6 | JS7 | |
| 462.1-0124-006A0-XM | 1.24 | 6.34 | 37.71 | 38.00 | 3.00 | 130.00 | 8.20 | 0.29 | 5.11 | h6 | JS7 | |
| 462.1-0125-006A0-XM | 1.25 | 6.32 | 37.71 | 38.00 | 3.00 | 130.00 | 8.20 | 0.29 | 5.06 | h6 | JS7 | |
| 462.1-0126-006A0-XM | 1.26 | 6.31 | 37.71 | 38.00 | 3.00 | 130.00 | 8.20 | 0.29 | 5.01 | h6 | JS7 | |
| 462.1-0127-006A0-XM | 1.27 | 6.30 | 37.70 | 38.00 | 3.00 | 130.00 | 8.20 | 0.30 | 4.96 | h6 | JS7 | |
| 462.1-0128-006A0-XM | 1.28 | 6.28 | 37.70 | 38.00 | 3.00 | 130.00 | 8.20 | 0.30 | 4.91 | h6 | JS7 | |
| 462.1-0129-006A0-XM | 1.29 | 6.26 | 37.70 | 38.00 | 3.00 | 130.00 | 8.20 | 0.30 | 4.86 | h6 | JS7 | |
| 462.1-0130-006A0-XM | 1.30 | 6.25 | 37.70 | 38.00 | 3.00 | 130.00 | 8.20 | 0.30 | 4.81 | h6 | JS7 | |
| 462.1-0131-007A0-XM | 1.31 | 7.24 | 37.69 | 38.00 | 3.00 | 130.00 | 9.20 | 0.31 | 5.52 | h6 | JS7 | |
| 462.1-0132-007A0-XM | 1.32 | 7.22 | 37.69 | 38.00 | 3.00 | 130.00 | 9.20 | 0.31 | 5.47 | h6 | JS7 | |
| 462.1-0133-007A0-XM | 1.33 | 7.20 | 37.69 | 38.00 | 3.00 | 130.00 | 9.20 | 0.31 | 5.42 | h6 | JS7 | |
| 462.1-0134-007A0-XM | 1.34 | 7.19 | 37.69 | 38.00 | 3.00 | 130.00 | 9.20 | 0.31 | 5.37 | h6 | JS7 | |
| 462.1-0135-007A0-XM | 1.35 | 7.18 | 37.69 | 38.00 | 3.00 | 130.00 | 9.20 | 0.31 | 5.31 | h6 | JS7 | |
| 462.1-0136-007A0-XM | 1.36 | 7.16 | 37.68 | 38.00 | 3.00 | 130.00 | 9.20 | 0.32 | 5.26 | h6 | JS7 | |
| 462.1-0137-007A0-XM | 1.37 | 7.14 | 37.68 | 38.00 | 3.00 | 130.00 | 9.20 | 0.32 | 5.22 | h6 | JS7 | |
| 462.1-0138-007A0-XM | 1.38 | 7.13 | 37.68 | 38.00 | 3.00 | 130.00 | 9.20 | 0.32 | 5.17 | h6 | JS7 | |
| 462.1-0139-007A0-XM | 1.39 | 7.11 | 37.68 | 38.00 | 3.00 | 130.00 | 9.20 | 0.32 | 5.12 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
