Инструменты с цельным профилем | Инструменты для сверления

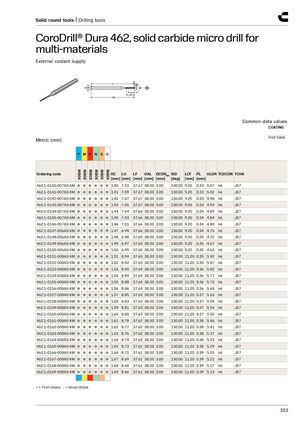

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Внешняя подача СОЖ
Стандартные значения параметров
ПОКРЫТИЕ: PVD TiAlN
Метрическая система (мм)
| Артикул | P X0BM |
M X0BM |
K X0BM |
N X0BM |
S X0BM |
O X0BM |
DC [мм] |
LU [мм] |
LF [мм] |
OAL [мм] |
DCONMS [мм] |
SIG [град] |
LCF [мм] |
PL [мм] |
ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0140-007A0-XM | ● | ● | ● | ● | ● | ● | 1.40 | 7.10 | 37.67 | 38.00 | 3.00 | 130.00 | 9.20 | 0.33 | 5.07 | h6 | JS7 |
| 462.1-0141-007A0-XM | ● | ● | ● | ● | ● | ● | 1.41 | 7.09 | 37.67 | 38.00 | 3.00 | 130.00 | 9.20 | 0.33 | 5.02 | h6 | JS7 |
| 462.1-0142-007A0-XM | ● | ● | ● | ● | ● | ● | 1.42 | 7.07 | 37.67 | 38.00 | 3.00 | 130.00 | 9.20 | 0.33 | 4.98 | h6 | JS7 |
| 462.1-0143-007A0-XM | ● | ● | ● | ● | ● | ● | 1.43 | 7.05 | 37.67 | 38.00 | 3.00 | 130.00 | 9.20 | 0.33 | 4.93 | h6 | JS7 |
| 462.1-0144-007A0-XM | ● | ● | ● | ● | ● | ● | 1.44 | 7.04 | 37.66 | 38.00 | 3.00 | 130.00 | 9.20 | 0.34 | 4.89 | h6 | JS7 |
| 462.1-0145-007A0-XM | ● | ● | ● | ● | ● | ● | 1.45 | 7.03 | 37.66 | 38.00 | 3.00 | 130.00 | 9.20 | 0.34 | 4.84 | h6 | JS7 |
| 462.1-0146-007A0-XM | ● | ● | ● | ● | ● | ● | 1.46 | 7.01 | 37.66 | 38.00 | 3.00 | 130.00 | 9.20 | 0.34 | 4.80 | h6 | JS7 |
| 462.1-0147-006A0-XM | ● | ● | ● | ● | ● | ● | 1.47 | 6.99 | 37.66 | 38.00 | 3.00 | 130.00 | 9.20 | 0.34 | 4.76 | h6 | JS7 |
| 462.1-0148-006A0-XM | ● | ● | ● | ● | ● | ● | 1.48 | 6.98 | 37.65 | 38.00 | 3.00 | 130.00 | 9.20 | 0.35 | 4.72 | h6 | JS7 |
| 462.1-0149-006A0-XM | ● | ● | ● | ● | ● | ● | 1.49 | 6.97 | 37.65 | 38.00 | 3.00 | 130.00 | 9.20 | 0.35 | 4.67 | h6 | JS7 |
| 462.1-0150-006A0-XM | ● | ● | ● | ● | ● | ● | 1.50 | 6.95 | 37.65 | 38.00 | 3.00 | 130.00 | 9.20 | 0.35 | 4.63 | h6 | JS7 |
| 462.1-0151-008A0-XM | ● | ● | ● | ● | ● | ● | 1.51 | 8.94 | 37.65 | 38.00 | 3.00 | 130.00 | 11.20 | 0.35 | 5.92 | h6 | JS7 |
| 462.1-0152-008A0-XM | ● | ● | ● | ● | ● | ● | 1.52 | 8.92 | 37.65 | 38.00 | 3.00 | 130.00 | 11.20 | 0.35 | 5.87 | h6 | JS7 |
| 462.1-0153-008A0-XM | ● | ● | ● | ● | ● | ● | 1.53 | 8.90 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.82 | h6 | JS7 |
| 462.1-0154-008A0-XM | ● | ● | ● | ● | ● | ● | 1.54 | 8.89 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.77 | h6 | JS7 |
| 462.1-0155-008A0-XM | ● | ● | ● | ● | ● | ● | 1.55 | 8.88 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.73 | h6 | JS7 |
| 462.1-0156-008A0-XM | ● | ● | ● | ● | ● | ● | 1.56 | 8.86 | 37.64 | 38.00 | 3.00 | 130.00 | 11.20 | 0.36 | 5.68 | h6 | JS7 |
| 462.1-0157-008A0-XM | ● | ● | ● | ● | ● | ● | 1.57 | 8.85 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.63 | h6 | JS7 |
| 462.1-0158-008A0-XM | ● | ● | ● | ● | ● | ● | 1.58 | 8.83 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.59 | h6 | JS7 |
| 462.1-0159-008A0-XM | ● | ● | ● | ● | ● | ● | 1.59 | 8.81 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.54 | h6 | JS7 |
| 462.1-0160-008A0-XM | ● | ● | ● | ● | ● | ● | 1.60 | 8.80 | 37.63 | 38.00 | 3.00 | 130.00 | 11.20 | 0.37 | 5.50 | h6 | JS7 |
| 462.1-0161-008A0-XM | ● | ● | ● | ● | ● | ● | 1.61 | 8.78 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.46 | h6 | JS7 |
| 462.1-0162-008A0-XM | ● | ● | ● | ● | ● | ● | 1.62 | 8.77 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.41 | h6 | JS7 |
| 462.1-0163-008A0-XM | ● | ● | ● | ● | ● | ● | 1.63 | 8.76 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.37 | h6 | JS7 |
| 462.1-0164-008A0-XM | ● | ● | ● | ● | ● | ● | 1.64 | 8.74 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.33 | h6 | JS7 |
| 462.1-0165-008A0-XM | ● | ● | ● | ● | ● | ● | 1.65 | 8.73 | 37.62 | 38.00 | 3.00 | 130.00 | 11.20 | 0.38 | 5.29 | h6 | JS7 |
| 462.1-0166-008A0-XM | ● | ● | ● | ● | ● | ● | 1.66 | 8.71 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.25 | h6 | JS7 |
| 462.1-0167-008A0-XM | ● | ● | ● | ● | ● | ● | 1.67 | 8.69 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.21 | h6 | JS7 |
| 462.1-0168-008A0-XM | ● | ● | ● | ● | ● | ● | 1.68 | 8.68 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.17 | h6 | JS7 |
| 462.1-0169-008A0-XM | ● | ● | ● | ● | ● | ● | 1.69 | 8.66 | 37.61 | 38.00 | 3.00 | 130.00 | 11.20 | 0.39 | 5.13 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
