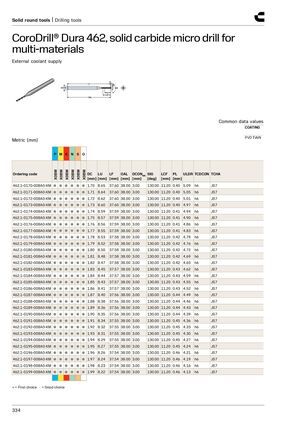

Цельные круглые инструменты | Инструменты для сверления
CoroDrill® Dura 462, цельнокарбидное микросверло для многоматериальной обработки
Подача охлаждающей жидкости снаружи
Основные характеристики
Покрытие: PVD TiAlN
Метрическая система (мм)
| Артикул заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0170-008A0-XM | 1.70 | 8.65 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.09 | h6 | JS7 | |
| 462.1-0171-008A0-XM | 1.71 | 8.64 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.05 | h6 | JS7 | |
| 462.1-0172-008A0-XM | 1.72 | 8.62 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 5.01 | h6 | JS7 | |
| 462.1-0173-008A0-XM | 1.73 | 8.60 | 37.60 | 38.00 | 3.00 | 130.00 | 11.20 | 0.40 | 4.97 | h6 | JS7 | |
| 462.1-0174-008A0-XM | 1.74 | 8.59 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.94 | h6 | JS7 | |
| 462.1-0175-008A0-XM | 1.75 | 8.57 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.90 | h6 | JS7 | |
| 462.1-0176-008A0-XM | 1.76 | 8.56 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.86 | h6 | JS7 | |
| 462.1-0177-008A0-XM | 1.77 | 8.55 | 37.59 | 38.00 | 3.00 | 130.00 | 11.20 | 0.41 | 4.83 | h6 | JS7 | |
| 462.1-0178-008A0-XM | 1.78 | 8.53 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.79 | h6 | JS7 | |
| 462.1-0179-008A0-XM | 1.79 | 8.52 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.76 | h6 | JS7 | |
| 462.1-0180-008A0-XM | 1.80 | 8.50 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.72 | h6 | JS7 | |
| 462.1-0181-008A0-XM | 1.81 | 8.48 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.69 | h6 | JS7 | |
| 462.1-0182-008A0-XM | 1.82 | 8.47 | 37.58 | 38.00 | 3.00 | 130.00 | 11.20 | 0.42 | 4.65 | h6 | JS7 | |
| 462.1-0183-008A0-XM | 1.83 | 8.45 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.62 | h6 | JS7 | |
| 462.1-0184-008A0-XM | 1.84 | 8.44 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.59 | h6 | JS7 | |
| 462.1-0185-008A0-XM | 1.85 | 8.43 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.55 | h6 | JS7 | |
| 462.1-0186-008A0-XM | 1.86 | 8.41 | 37.57 | 38.00 | 3.00 | 130.00 | 11.20 | 0.43 | 4.52 | h6 | JS7 | |
| 462.1-0187-008A0-XM | 1.87 | 8.40 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.49 | h6 | JS7 | |
| 462.1-0188-008A0-XM | 1.88 | 8.38 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.46 | h6 | JS7 | |
| 462.1-0189-008A0-XM | 1.89 | 8.36 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.43 | h6 | JS7 | |
| 462.1-0190-008A0-XM | 1.90 | 8.35 | 37.56 | 38.00 | 3.00 | 130.00 | 11.20 | 0.44 | 4.39 | h6 | JS7 | |
| 462.1-0191-008A0-XM | 1.91 | 8.34 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.36 | h6 | JS7 | |
| 462.1-0192-008A0-XM | 1.92 | 8.32 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.33 | h6 | JS7 | |
| 462.1-0193-008A0-XM | 1.93 | 8.31 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.30 | h6 | JS7 | |
| 462.1-0194-008A0-XM | 1.94 | 8.29 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.27 | h6 | JS7 | |
| 462.1-0195-008A0-XM | 1.95 | 8.27 | 37.55 | 38.00 | 3.00 | 130.00 | 11.20 | 0.45 | 4.24 | h6 | JS7 | |
| 462.1-0196-008A0-XM | 1.96 | 8.26 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.21 | h6 | JS7 | |
| 462.1-0197-008A0-XM | 1.97 | 8.24 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.19 | h6 | JS7 | |
| 462.1-0198-008A0-XM | 1.98 | 8.23 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.16 | h6 | JS7 | |
| 462.1-0199-008A0-XM | 1.99 | 8.22 | 37.54 | 38.00 | 3.00 | 130.00 | 11.20 | 0.46 | 4.13 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
