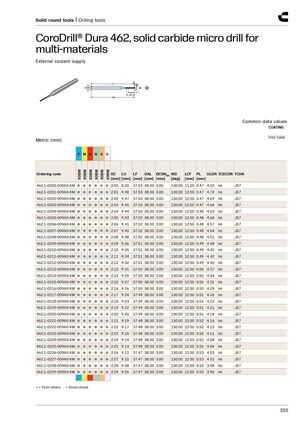

Цельные круглые инструменты | Инструменты для сверления
CoroDrill® Dura 462, цельнокарбидное микросверло для многоматериальной обработки
Подача охлаждающей жидкости снаружи
Основные характеристики
Покрытие: PVD TiAlN
Метрическая система (мм)
| Артикул заказа | DC [мм] | LU [мм] | LF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LCF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0200-008A0-XM | 2.00 | 8.20 | 37.53 | 38.00 | 3.00 | 130.00 | 11.20 | 0.47 | 4.10 | h6 | JS7 | |
| 462.1-0201-009A0-XM | 2.01 | 9.48 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.72 | h6 | JS7 | |
| 462.1-0202-009A0-XM | 2.02 | 9.47 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.69 | h6 | JS7 | |
| 462.1-0203-009A0-XM | 2.03 | 9.45 | 37.53 | 38.00 | 3.00 | 130.00 | 12.50 | 0.47 | 4.66 | h6 | JS7 | |
| 462.1-0204-009A0-XM | 2.04 | 9.44 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.63 | h6 | JS7 | |
| 462.1-0205-009A0-XM | 2.05 | 9.43 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.60 | h6 | JS7 | |
| 462.1-0206-009A0-XM | 2.06 | 9.41 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.57 | h6 | JS7 | |
| 462.1-0207-009A0-XM | 2.07 | 9.40 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.54 | h6 | JS7 | |
| 462.1-0208-009A0-XM | 2.08 | 9.38 | 37.52 | 38.00 | 3.00 | 130.00 | 12.50 | 0.48 | 4.51 | h6 | JS7 | |
| 462.1-0209-009A0-XM | 2.09 | 9.36 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.48 | h6 | JS7 | |
| 462.1-0210-009A0-XM | 2.10 | 9.35 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.45 | h6 | JS7 | |
| 462.1-0211-009A0-XM | 2.11 | 9.34 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.42 | h6 | JS7 | |
| 462.1-0212-009A0-XM | 2.12 | 9.32 | 37.51 | 38.00 | 3.00 | 130.00 | 12.50 | 0.49 | 4.40 | h6 | JS7 | |
| 462.1-0213-009A0-XM | 2.13 | 9.31 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.37 | h6 | JS7 | |
| 462.1-0214-009A0-XM | 2.14 | 9.29 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.34 | h6 | JS7 | |
| 462.1-0215-009A0-XM | 2.15 | 9.27 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.31 | h6 | JS7 | |
| 462.1-0216-009A0-XM | 2.16 | 9.26 | 37.50 | 38.00 | 3.00 | 130.00 | 12.50 | 0.50 | 4.29 | h6 | JS7 | |
| 462.1-0217-009A0-XM | 2.17 | 9.24 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.26 | h6 | JS7 | |
| 462.1-0218-009A0-XM | 2.18 | 9.23 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.23 | h6 | JS7 | |
| 462.1-0219-009A0-XM | 2.19 | 9.22 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.21 | h6 | JS7 | |
| 462.1-0220-009A0-XM | 2.20 | 9.20 | 37.49 | 38.00 | 3.00 | 130.00 | 12.50 | 0.51 | 4.18 | h6 | JS7 | |
| 462.1-0221-009A0-XM | 2.21 | 9.19 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.16 | h6 | JS7 | |
| 462.1-0222-009A0-XM | 2.22 | 9.17 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.13 | h6 | JS7 | |
| 462.1-0223-009A0-XM | 2.23 | 9.15 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.11 | h6 | JS7 | |
| 462.1-0224-009A0-XM | 2.24 | 9.14 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.08 | h6 | JS7 | |
| 462.1-0225-009A0-XM | 2.25 | 9.13 | 37.48 | 38.00 | 3.00 | 130.00 | 12.50 | 0.52 | 4.06 | h6 | JS7 | |
| 462.1-0226-009A0-XM | 2.26 | 9.11 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 4.03 | h6 | JS7 | |
| 462.1-0227-009A0-XM | 2.27 | 9.10 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 4.01 | h6 | JS7 | |
| 462.1-0228-009A0-XM | 2.28 | 9.08 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 3.98 | h6 | JS7 | |
| 462.1-0229-009A0-XM | 2.29 | 9.06 | 37.47 | 38.00 | 3.00 | 130.00 | 12.50 | 0.53 | 3.96 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
