Инструменты с цельным профилем | Инструменты для сверления

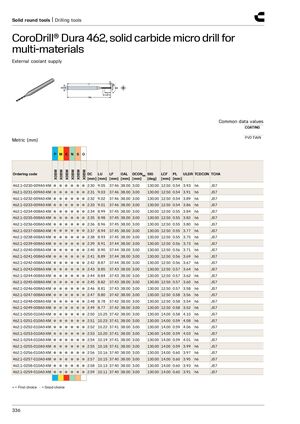

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Внешняя подача СОЖ
Стандартные значения параметров
ПОКРЫТИЕ: PVD TiAlN
Метрическая система (мм)
| Артикул | P X0BM |
M X0BM |
K X0BM |
N X0BM |
S X0BM |
O X0BM |
DC [мм] |
LU [мм] |
LF [мм] |
OAL [мм] |
DCONMS [мм] |
SIG [град] |
LCF [мм] |
PL [мм] |
ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0230-009A0-XM | ● | ● | ● | ● | ● | ● | 2.30 | 9.05 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.93 | h6 | JS7 |
| 462.1-0231-009A0-XM | ● | ● | ● | ● | ● | ● | 2.31 | 9.03 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.91 | h6 | JS7 |
| 462.1-0232-009A0-XM | ● | ● | ● | ● | ● | ● | 2.32 | 9.02 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.89 | h6 | JS7 |
| 462.1-0233-009A0-XM | ● | ● | ● | ● | ● | ● | 2.33 | 9.01 | 37.46 | 38.00 | 3.00 | 130.00 | 12.50 | 0.54 | 3.86 | h6 | JS7 |
| 462.1-0234-008A0-XM | ● | ● | ● | ● | ● | ● | 2.34 | 8.99 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.84 | h6 | JS7 |
| 462.1-0235-008A0-XM | ● | ● | ● | ● | ● | ● | 2.35 | 8.98 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.82 | h6 | JS7 |
| 462.1-0236-008A0-XM | ● | ● | ● | ● | ● | ● | 2.36 | 8.96 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.80 | h6 | JS7 |
| 462.1-0237-008A0-XM | ● | ● | ● | ● | ● | ● | 2.37 | 8.94 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.77 | h6 | JS7 |
| 462.1-0238-008A0-XM | ● | ● | ● | ● | ● | ● | 2.38 | 8.93 | 37.45 | 38.00 | 3.00 | 130.00 | 12.50 | 0.55 | 3.75 | h6 | JS7 |
| 462.1-0239-008A0-XM | ● | ● | ● | ● | ● | ● | 2.39 | 8.91 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.73 | h6 | JS7 |
| 462.1-0240-008A0-XM | ● | ● | ● | ● | ● | ● | 2.40 | 8.90 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.71 | h6 | JS7 |
| 462.1-0241-008A0-XM | ● | ● | ● | ● | ● | ● | 2.41 | 8.89 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.69 | h6 | JS7 |
| 462.1-0242-008A0-XM | ● | ● | ● | ● | ● | ● | 2.42 | 8.87 | 37.44 | 38.00 | 3.00 | 130.00 | 12.50 | 0.56 | 3.67 | h6 | JS7 |
| 462.1-0243-008A0-XM | ● | ● | ● | ● | ● | ● | 2.43 | 8.85 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.64 | h6 | JS7 |
| 462.1-0244-008A0-XM | ● | ● | ● | ● | ● | ● | 2.44 | 8.84 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.62 | h6 | JS7 |
| 462.1-0245-008A0-XM | ● | ● | ● | ● | ● | ● | 2.45 | 8.82 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.60 | h6 | JS7 |
| 462.1-0246-008A0-XM | ● | ● | ● | ● | ● | ● | 2.46 | 8.81 | 37.43 | 38.00 | 3.00 | 130.00 | 12.50 | 0.57 | 3.58 | h6 | JS7 |
| 462.1-0247-008A0-XM | ● | ● | ● | ● | ● | ● | 2.47 | 8.80 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.56 | h6 | JS7 |
| 462.1-0248-008A0-XM | ● | ● | ● | ● | ● | ● | 2.48 | 8.78 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.54 | h6 | JS7 |
| 462.1-0249-008A0-XM | ● | ● | ● | ● | ● | ● | 2.49 | 8.77 | 37.42 | 38.00 | 3.00 | 130.00 | 12.50 | 0.58 | 3.52 | h6 | JS7 |
| 462.1-0250-010A0-XM | ● | ● | ● | ● | ● | ● | 2.50 | 10.25 | 37.42 | 38.00 | 3.00 | 130.00 | 14.00 | 0.58 | 4.10 | h6 | JS7 |
| 462.1-0251-010A0-XM | ● | ● | ● | ● | ● | ● | 2.51 | 10.23 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.08 | h6 | JS7 |
| 462.1-0252-010A0-XM | ● | ● | ● | ● | ● | ● | 2.52 | 10.22 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.06 | h6 | JS7 |
| 462.1-0253-010A0-XM | ● | ● | ● | ● | ● | ● | 2.53 | 10.20 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.03 | h6 | JS7 |
| 462.1-0254-010A0-XM | ● | ● | ● | ● | ● | ● | 2.54 | 10.19 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 4.01 | h6 | JS7 |
| 462.1-0255-010A0-XM | ● | ● | ● | ● | ● | ● | 2.55 | 10.18 | 37.41 | 38.00 | 3.00 | 130.00 | 14.00 | 0.59 | 3.99 | h6 | JS7 |
| 462.1-0256-010A0-XM | ● | ● | ● | ● | ● | ● | 2.56 | 10.16 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.97 | h6 | JS7 |
| 462.1-0257-010A0-XM | ● | ● | ● | ● | ● | ● | 2.57 | 10.15 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.95 | h6 | JS7 |
| 462.1-0258-010A0-XM | ● | ● | ● | ● | ● | ● | 2.58 | 10.13 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.93 | h6 | JS7 |
| 462.1-0259-010A0-XM | ● | ● | ● | ● | ● | ● | 2.59 | 10.11 | 37.40 | 38.00 | 3.00 | 130.00 | 14.00 | 0.60 | 3.91 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
