Инструменты с цельным профилем | Инструменты для сверления

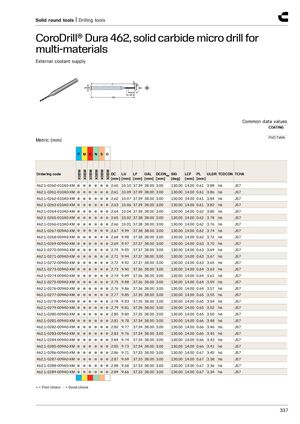

CoroDrill® Dura 462, микросверло из твердого сплава для обработки различных материалов
Внешняя подача СОЖ
Стандартные значения параметров
ПОКРЫТИЕ: PVD TiAlN
Метрическая система (мм)
| Артикул | P X0BM |
M X0BM |
K X0BM |
N X0BM |
S X0BM |
O X0BM |
DC [мм] |
LU [мм] |
LF [мм] |
OAL [мм] |
DCONMS [мм] |
SIG [град] |
LCF [мм] |
PL [мм] |
ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.1-0260-010A0-XM | ● | ● | ● | ● | ● | ● | 2.60 | 10.10 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.88 | h6 | JS7 |
| 462.1-0261-010A0-XM | ● | ● | ● | ● | ● | ● | 2.61 | 10.09 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.86 | h6 | JS7 |
| 462.1-0262-010A0-XM | ● | ● | ● | ● | ● | ● | 2.62 | 10.07 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.84 | h6 | JS7 |
| 462.1-0263-010A0-XM | ● | ● | ● | ● | ● | ● | 2.63 | 10.06 | 37.39 | 38.00 | 3.00 | 130.00 | 14.00 | 0.61 | 3.82 | h6 | JS7 |
| 462.1-0264-010A0-XM | ● | ● | ● | ● | ● | ● | 2.64 | 10.04 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.80 | h6 | JS7 |
| 462.1-0265-010A0-XM | ● | ● | ● | ● | ● | ● | 2.65 | 10.02 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.78 | h6 | JS7 |
| 462.1-0266-010A0-XM | ● | ● | ● | ● | ● | ● | 2.66 | 10.01 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.76 | h6 | JS7 |
| 462.1-0267-009A0-XM | ● | ● | ● | ● | ● | ● | 2.67 | 9.99 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.74 | h6 | JS7 |
| 462.1-0268-009A0-XM | ● | ● | ● | ● | ● | ● | 2.68 | 9.98 | 37.38 | 38.00 | 3.00 | 130.00 | 14.00 | 0.62 | 3.72 | h6 | JS7 |
| 462.1-0269-009A0-XM | ● | ● | ● | ● | ● | ● | 2.69 | 9.97 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.70 | h6 | JS7 |
| 462.1-0270-009A0-XM | ● | ● | ● | ● | ● | ● | 2.70 | 9.95 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.69 | h6 | JS7 |
| 462.1-0271-009A0-XM | ● | ● | ● | ● | ● | ● | 2.71 | 9.94 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.67 | h6 | JS7 |
| 462.1-0272-009A0-XM | ● | ● | ● | ● | ● | ● | 2.72 | 9.92 | 37.37 | 38.00 | 3.00 | 130.00 | 14.00 | 0.63 | 3.65 | h6 | JS7 |
| 462.1-0273-009A0-XM | ● | ● | ● | ● | ● | ● | 2.73 | 9.90 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.63 | h6 | JS7 |
| 462.1-0274-009A0-XM | ● | ● | ● | ● | ● | ● | 2.74 | 9.89 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.61 | h6 | JS7 |
| 462.1-0275-009A0-XM | ● | ● | ● | ● | ● | ● | 2.75 | 9.88 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.59 | h6 | JS7 |
| 462.1-0276-009A0-XM | ● | ● | ● | ● | ● | ● | 2.76 | 9.86 | 37.36 | 38.00 | 3.00 | 130.00 | 14.00 | 0.64 | 3.57 | h6 | JS7 |
| 462.1-0277-009A0-XM | ● | ● | ● | ● | ● | ● | 2.77 | 9.85 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.55 | h6 | JS7 |
| 462.1-0278-009A0-XM | ● | ● | ● | ● | ● | ● | 2.78 | 9.83 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.54 | h6 | JS7 |
| 462.1-0279-009A0-XM | ● | ● | ● | ● | ● | ● | 2.79 | 9.81 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.52 | h6 | JS7 |
| 462.1-0280-009A0-XM | ● | ● | ● | ● | ● | ● | 2.80 | 9.80 | 37.35 | 38.00 | 3.00 | 130.00 | 14.00 | 0.65 | 3.50 | h6 | JS7 |
| 462.1-0281-009A0-XM | ● | ● | ● | ● | ● | ● | 2.81 | 9.78 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.48 | h6 | JS7 |
| 462.1-0282-009A0-XM | ● | ● | ● | ● | ● | ● | 2.82 | 9.77 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.46 | h6 | JS7 |
| 462.1-0283-009A0-XM | ● | ● | ● | ● | ● | ● | 2.83 | 9.76 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.45 | h6 | JS7 |
| 462.1-0284-009A0-XM | ● | ● | ● | ● | ● | ● | 2.84 | 9.74 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.43 | h6 | JS7 |
| 462.1-0285-009A0-XM | ● | ● | ● | ● | ● | ● | 2.85 | 9.73 | 37.34 | 38.00 | 3.00 | 130.00 | 14.00 | 0.66 | 3.41 | h6 | JS7 |
| 462.1-0286-009A0-XM | ● | ● | ● | ● | ● | ● | 2.86 | 9.71 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.40 | h6 | JS7 |
| 462.1-0287-009A0-XM | ● | ● | ● | ● | ● | ● | 2.87 | 9.69 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.38 | h6 | JS7 |
| 462.1-0288-009A0-XM | ● | ● | ● | ● | ● | ● | 2.88 | 9.68 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.36 | h6 | JS7 |
| 462.1-0289-009A0-XM | ● | ● | ● | ● | ● | ● | 2.89 | 9.66 | 37.33 | 38.00 | 3.00 | 130.00 | 14.00 | 0.67 | 3.34 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
