Резцы | Сменные пластины для точения

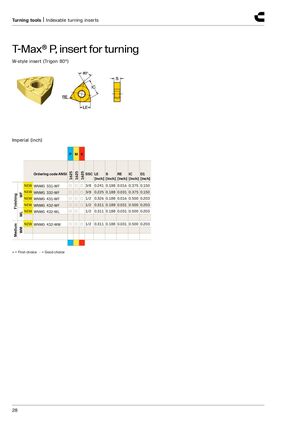

T-Max® P, пластина для точения
Пластина типа W (треугольник 80°)
Имперская система (дюймы)
Финишная обработка
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW WNMG 331-WF | ○ | ○ | ○ | 3/8 | 0.241 | 0.188 | 0.016 | 0.375 | 0.150 |
| NEW WNMG 332-WF | ○ | ○ | ○ | 3/8 | 0.225 | 0.188 | 0.031 | 0.375 | 0.150 |
| NEW WNMG 431-WF | ○ | ○ | ○ | 1/2 | 0.326 | 0.188 | 0.016 | 0.500 | 0.203 |
| NEW WNMG 432-WF | ○ | ○ | ○ | 1/2 | 0.311 | 0.188 | 0.031 | 0.500 | 0.203 |
| NEW WNMG 432-WL | ○ | ○ | 1/2 | 0.311 | 0.188 | 0.031 | 0.500 | 0.203 | |
Средний
| Код заказа ANSI | P | M | K | SSC | LE | S | RE | IC | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 1625 | 1625 | 1625 | |||||||
| NEW WNMG 432-WM | ○ | ○ | ○ | 1/2 | 0.311 | 0.188 | 0.031 | 0.500 | 0.203 |
● = Первый выбор ○ = Хороший выбор
