Инструменты фрезерования | Инструменты профильного фрезерования

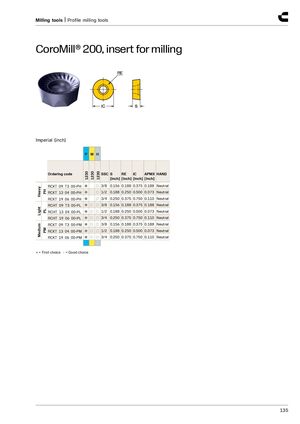

CoroMill® 200, пластина для фрезерования
Дюймовые размеры (дюймы)
| Код заказа | SSC | S [дюйм] | RE [дюйм] | IC [дюйм] | APMX [дюйм] | HAND |
|---|---|---|---|---|---|---|
| Тяжелая (PH) | ||||||
| RCKT 09 T3 00-PH | ● | 0.156 | 0.188 | 0.375 | 0.188 | Нейтральная |
| RCKT 13 04 00-PH | ● | 0.188 | 0.250 | 0.500 | 0.073 | Нейтральная |
| RCKT 19 06 00-PH | ● | 0.250 | 0.375 | 0.750 | 0.110 | Нейтральная |
| Легкая (PL) | ||||||
| RCHT 09 T3 00-PL | ● | 0.156 | 0.188 | 0.375 | 0.188 | Нейтральная |
| RCHT 13 04 00-PL | ● | 0.188 | 0.250 | 0.500 | 0.073 | Нейтральная |
| RCHT 19 06 00-PL | ● | 0.250 | 0.375 | 0.750 | 0.110 | Нейтральная |
| Средняя (PM) | ||||||
| RCKT 09 T3 00-PM | ● | 0.156 | 0.188 | 0.375 | 0.188 | Нейтральная |
| RCKT 13 04 00-PM | ● | 0.188 | 0.250 | 0.500 | 0.073 | Нейтральная |
| RCKT 19 06 00-PM | ● | 0.250 | 0.375 | 0.750 | 0.110 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
