Инструменты фрезерования | Инструменты профильного фрезерования

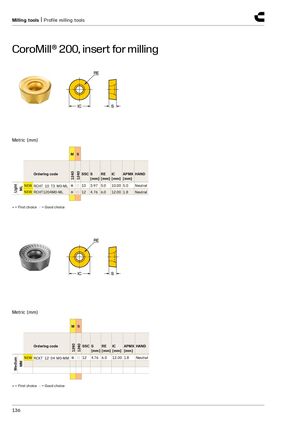

CoroMill® 200, пластина для фрезерования
Метрические размеры (мм)
Легкая (ML)
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
|---|---|---|---|---|---|---|
| NEW RCHT 10 T3 M0-ML | ● | 3.97 | 5.0 | 10.00 | 5.0 | Нейтральная |
| NEW RCHT 12 04 M0-ML | ● | 4.76 | 6.0 | 12.00 | 1.8 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
Средняя (MM)
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
|---|---|---|---|---|---|---|
| NEW RCKT 12 04 M0-MM | ● | 4.76 | 6.0 | 12.00 | 1.8 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
