Фрезерные инструменты | Плечевые фрезы

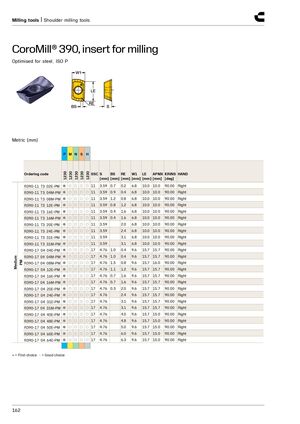

CoroMill® 390, пластина для фрезерования
Оптимизирована для стали, ISO P
Средний режим PM
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| R390-11 T3 02E-PM | ● (Первый выбор) | 3.59 | 0.7 | 0.2 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 04M-PM | ● (Первый выбор) | 3.59 | 0.9 | 0.4 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 08M-PM | ● (Первый выбор) | 3.59 | 1.2 | 0.8 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 12E-PM | ● (Первый выбор) | 3.59 | 0.8 | 1.2 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 16E-PM | ● (Первый выбор) | 3.59 | 0.4 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 16M-PM | ● (Первый выбор) | 3.59 | 0.4 | 1.6 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение |
| R390-11 T3 20E-PM | ● (Первый выбор) | 3.59 | 2.0 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение | |
| R390-11 T3 24E-PM | ● (Первый выбор) | 3.59 | 2.4 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение | |
| R390-11 T3 31E-PM | ● (Первый выбор) | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение | |
| R390-11 T3 31M-PM | ● (Первый выбор) | 3.59 | 3.1 | 6.8 | 10.0 | 10.0 | 90.00 | Правое вращение | |
| R390-17 04 04E-PM | ● (Первый выбор) | 4.76 | 1.0 | 0.4 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 04M-PM | ● (Первый выбор) | 4.76 | 1.0 | 0.4 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 08M-PM | ● (Первый выбор) | 4.76 | 1.5 | 0.8 | 9.6 | 15.7 | 16.0 | 90.00 | Правое вращение |
| R390-17 04 12E-PM | ● (Первый выбор) | 4.76 | 1.1 | 1.2 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 16E-PM | ● (Первый выбор) | 4.76 | 0.7 | 1.6 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 16M-PM | ● (Первый выбор) | 4.76 | 0.7 | 1.6 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 20E-PM | ● (Первый выбор) | 4.76 | 0.3 | 2.0 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение |
| R390-17 04 24E-PM | ● (Первый выбор) | 4.76 | 2.4 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение | |
| R390-17 04 31E-PM | ● (Первый выбор) | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение | |
| R390-17 04 31M-PM | ● (Первый выбор) | 4.76 | 3.1 | 9.6 | 15.7 | 15.7 | 90.00 | Правое вращение | |
| R390-17 04 40E-PM | ● (Первый выбор) | 4.76 | 4.0 | 9.6 | 15.7 | 15.0 | 90.00 | Правое вращение | |
| R390-17 04 48E-PM | ● (Первый выбор) | 4.76 | 4.8 | 9.6 | 15.7 | 15.0 | 90.00 | Правое вращение | |
| R390-17 04 50E-PM | ● (Первый выбор) | 4.76 | 5.0 | 9.6 | 15.7 | 15.0 | 90.00 | Правое вращение | |
| R390-17 04 60E-PM | ● (Первый выбор) | 4.76 | 6.0 | 9.6 | 15.7 | 15.0 | 90.00 | Правое вращение | |
| R390-17 04 64E-PM | ● (Первый выбор) | 4.76 | 6.3 | 9.6 | 15.7 | 15.0 | 90.00 | Правое вращение |
