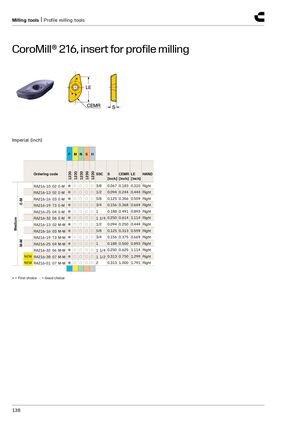

Milling tools | Profile milling tools CoroMill® 216, insert for profile milling Imperial (inch) P M N S H 1230 1230 1230 1230 1230 Ordering code SSC S CEMR LE HAND [inch] [inch] [inch] RA216-10 02 E-M ● ○ ○ ○ ○ 3/8 0.067 0.183 0.310 Right RA216-13 02 E-M ● ○ ○ ○ ○ 1/2 0.094 0.244 0.444 Right RA216-16 03 E-M ● ○ ○ ○ ○ 5/8 0.125 0.306 0.559 Right E-M RA216-19 T3 E-M ● ○ ○ ○ ○ 3/4 0.156 0.368 0.669 Right RA216-25 04 E-M ● ○ ○ ○ ○ 1 0.188 0.491 0.893 Right RA216-32 06 E-M ● ○ ○ ○ ○ 1 1/4 0.250 0.614 1.114 Right Medium RA216-13 02 M-M ● ○ ○ ○ ○ 1/2 0.094 0.250 0.444 Right RA216-16 03 M-M ● ○ ○ ○ ○ 5/8 0.125 0.313 0.559 Right RA216-19 T3 M-M ● ○ ○ ○ ○ 3/4 0.156 0.375 0.669 Right RA216-25 04 M-M ● ○ ○ ○ ○ 1 M-M 0.188 0.500 0.893 Right RA216-32 06 M-M ● ○ ○ ○ ○ 1 1/4 0.250 0.625 1.114 Right NEW RA216-38 07 M-M ● ○ ○ ○ ○ 1 1/2 0.313 0.750 1.299 Right NEW RA216-51 07 M-M ● ○ ○ ○ ○ 2 0.313 1.000 1.791 Right ● = First choice ○ = Good choice 138
