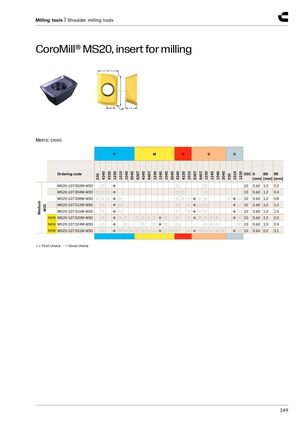

Milling tools | Shoulder milling tools CoroMill® MS20, insert for milling W1 LE BS RE S Metric (mm) P M K S H S30T S40T S30T S40T 4340 4330 1230 1010 1040 2040 4340 1230 1240 1040 2040 4340 4330 1010 1230 1240 1040 2040 1010 1230 Ordering code SSC S BS RE 530 530 [mm] [mm] [mm] MS20-10T302M-M30 ○ ● ○ ○ 10 3.60 1.2 0.2 MS20-10T304M-M30 ○ ○ ○ ● ○○ ○ 10 3.60 1.2 0.4 MS20-10T308M-M30 ○ ○ ○ ● ○ ○○○●○○ ○ ● ○ 10 3.60 1.2 0.8 ○ ●○ ○ ○●○○ ● ○ 10 Medium MS20-10T312M-M30 3.60 1.2 1.2 M30 MS20-10T316M-M30 ○ ●○ ○ ○●○○ ● ○ 10 3.60 1.2 1.6 NEW MS20-10T320M-M30 ○ ●○○ ○○○○●○ ○ ○●○○○○ ● ○ 10 3.60 1.2 2.0 NEW MS20-10T324M-M30 ○ ● ○ ○ ○●○ ○ ○○○ ○ 10 3.60 1.0 2.4 NEW MS20-10T331M-M30 ○ ● ○ ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ● ○ 10 3.60 0.2 3.1 ● = First choice ○ = Good choice 149
