Инструменты фрезерования | Инструменты фрезерования торцевых уступов

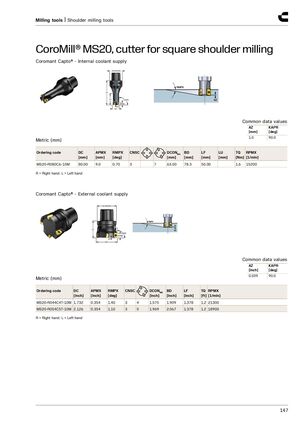

CoroMill® MS20, фреза для квадратного торцевого уступа
Coromant Capto® — внутренняя подача СОЖ
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS20-R080C6-10M | 80.00 | 9.0 | 0.70 | 3 + 7 | 63.00 | 78.3 | 50.00 | 1.6 | 15200 |
R = Правая, L = Левая
Coromant Capto® — внешняя подача СОЖ
Метрические размеры (мм)
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LF [дюйм] | TQ [фут-фунт] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS20-R044C4T-10M | 1.732 | 0.354 | 1.40 | 3 + 4 | 1.575 | 1.909 | 1.378 | 1.2 | 21300 |
| MS20-R054C5T-10M | 2.126 | 0.354 | 1.10 | 3 + 5 | 1.969 | 2.067 | 1.378 | 1.2 | 18900 |
R = Правая, L = Левая
