Цельные круглые инструменты | Фрезерный инструмент

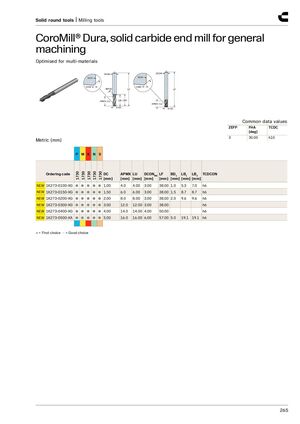

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| ZEFP | FHA [град] | TCDC |
|---|---|---|
| 3 | 30.00 | h10 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|
| NEW 1K273-0100-XG | 1.00 | 4.0 | 4.00 | 3.00 | 38.00 | 1.0 | 5.3 | 7.0 | h6 |
| NEW 1K273-0150-XG | 1.50 | 6.0 | 6.00 | 3.00 | 38.00 | 1.5 | 8.7 | 8.7 | h6 |
| NEW 1K273-0200-XG | 2.00 | 8.0 | 8.00 | 3.00 | 38.00 | 2.0 | 9.6 | 9.6 | h6 |
| NEW 1K273-0300-XG | 3.00 | 12.0 | 12.00 | 3.00 | 38.00 | h6 | |||
| NEW 1K273-0400-XG | 4.00 | 14.0 | 14.00 | 4.00 | 50.00 | h6 | |||
| NEW 1K273-0500-XA | 5.00 | 16.0 | 16.00 | 6.00 | 57.00 | 5.0 | 19.1 | 19.1 | h6 |
