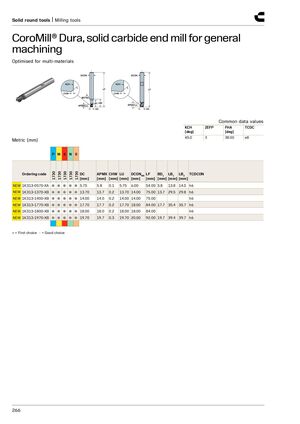

Цельные круглые инструменты | Фрезерный инструмент
CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 3 | 38.00 | e8 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K313-0575-XA | 5.75 | 5.8 | 0.1 | 5.75 | 6.00 | 54.00 | 5.8 | 13.8 | 14.0 | h6 |
| NEW 1K313-1370-XB | 13.70 | 13.7 | 0.2 | 13.70 | 14.00 | 75.00 | 13.7 | 29.5 | 29.8 | h6 |
| NEW 1K313-1400-XB | 14.00 | 14.0 | 0.2 | 14.00 | 14.00 | 75.00 | h6 | |||
| NEW 1K313-1770-XB | 17.70 | 17.7 | 0.2 | 17.70 | 18.00 | 84.00 | 17.7 | 35.4 | 35.7 | h6 |
| NEW 1K313-1800-XB | 18.00 | 18.0 | 0.2 | 18.00 | 18.00 | 84.00 | h6 | |||
| NEW 1K313-1970-XB | 19.70 | 19.7 | 0.3 | 19.70 | 20.00 | 92.00 | 19.7 | 39.4 | 39.7 | h6 |
