Цельные круглые инструменты | Фрезерный инструмент

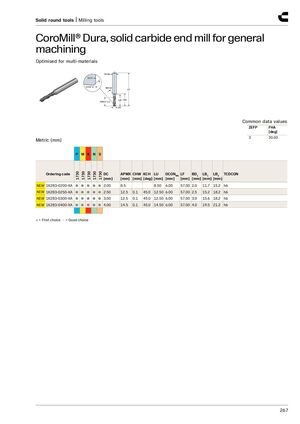

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| ZEFP | FHA [град] |
|---|---|
| 3 | 30.00 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | KCH [град] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K283-0200-XA | 2.00 | 8.5 | 8.50 | 6.00 | 57.00 | 2.0 | 11.7 | 15.2 | h6 | ||
| NEW 1K283-0250-XA | 2.50 | 12.5 | 0.1 | 45.0 | 12.50 | 6.00 | 57.00 | 2.5 | 15.2 | 18.2 | h6 |
| NEW 1K283-0300-XA | 3.00 | 12.5 | 0.1 | 45.0 | 12.50 | 6.00 | 57.00 | 3.0 | 15.6 | 18.2 | h6 |
| NEW 1K283-0400-XA | 4.00 | 14.5 | 0.1 | 45.0 | 14.50 | 6.00 | 57.00 | 4.0 | 19.5 | 21.2 | h6 |
