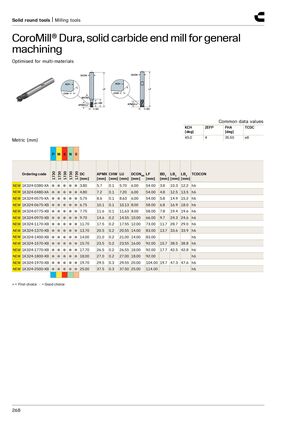

Цельные круглые инструменты | Фрезерный инструмент
CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 4 | 35.50 | e8 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K324-0380-XA | 3.80 | 5.7 | 0.1 | 5.70 | 6.00 | 54.00 | 3.8 | 10.3 | 12.2 | h6 |
| NEW 1K324-0480-XA | 4.80 | 7.2 | 0.1 | 7.20 | 6.00 | 54.00 | 4.8 | 12.5 | 13.5 | h6 |
| NEW 1K324-0575-XA | 5.75 | 8.6 | 0.1 | 8.63 | 6.00 | 54.00 | 5.8 | 14.9 | 15.2 | h6 |
| NEW 1K324-0675-XB | 6.75 | 10.1 | 0.1 | 10.13 | 8.00 | 58.00 | 6.8 | 16.9 | 18.0 | h6 |
| NEW 1K324-0775-XB | 7.75 | 11.6 | 0.1 | 11.63 | 8.00 | 58.00 | 7.8 | 19.4 | 19.6 | h6 |
| NEW 1K324-0970-XB | 9.70 | 14.6 | 0.2 | 14.55 | 10.00 | 66.00 | 9.7 | 24.3 | 24.6 | h6 |
| NEW 1K324-1170-XB | 11.70 | 17.5 | 0.2 | 17.55 | 12.00 | 73.00 | 11.7 | 28.7 | 29.0 | h6 |
| NEW 1K324-1370-XB | 13.70 | 20.5 | 0.2 | 20.55 | 14.00 | 83.00 | 13.7 | 33.6 | 33.9 | h6 |
| NEW 1K324-1400-XB | 14.00 | 21.0 | 0.2 | 21.00 | 14.00 | 83.00 | h6 | |||
| NEW 1K324-1570-XB | 15.70 | 23.5 | 0.2 | 23.55 | 16.00 | 92.00 | 15.7 | 38.5 | 38.8 | h6 |
| NEW 1K324-1770-XB | 17.70 | 26.5 | 0.2 | 26.55 | 18.00 | 92.00 | 17.7 | 42.5 | 42.8 | h6 |
| NEW 1K324-1800-XB | 18.00 | 27.0 | 0.2 | 27.00 | 18.00 | 92.00 | h6 | |||
| NEW 1K324-1970-XB | 19.70 | 29.5 | 0.3 | 29.55 | 20.00 | 104.00 | 19.7 | 47.3 | 47.6 | h6 |
| NEW 1K324-2500-XB | 25.00 | 37.5 | 0.3 | 37.50 | 25.00 | 114.00 | h6 |
