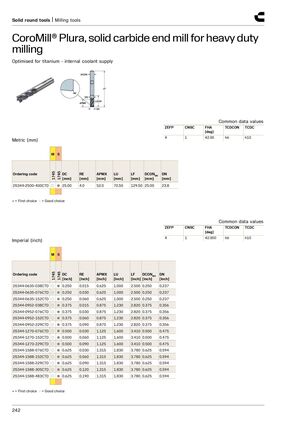

Solid round tools | Milling tools CoroMill® Plura, solid carbide end mill for heavy duty milling Optimised for titanium - internal coolant supply Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2S344-2500-400CTD ○ ● 25.00 4.0 52.0 70.50 129.50 25.00 23.8 ● = First choice ○ = Good choice Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2S344-0635-038CTD ○ ● 0.250 0.015 0.625 1.000 2.500 0.250 0.237 2S344-0635-076CTD ○ ● 0.250 0.030 0.625 1.000 2.500 0.250 0.237 2S344-0635-152CTD ○ ● 0.250 0.060 0.625 1.000 2.500 0.250 0.237 2S344-0952-038CTD ○ ● 0.375 0.015 0.875 1.230 2.820 0.375 0.356 2S344-0952-076CTD ○ ● 0.375 0.030 0.875 1.230 2.820 0.375 0.356 2S344-0952-152CTD ○ ● 0.375 0.060 0.875 1.230 2.820 0.375 0.356 2S344-0952-229CTD ○ ● 0.375 0.090 0.875 1.230 2.820 0.375 0.356 2S344-1270-076CTD ○ ● 0.500 0.030 1.125 1.600 3.410 0.500 0.475 2S344-1270-152CTD ○ ● 0.500 0.060 1.125 1.600 3.410 0.500 0.475 2S344-1270-229CTD ○ ● 0.500 0.090 1.125 1.600 3.410 0.500 0.475 2S344-1588-076CTD ○ ● 0.625 0.030 1.315 1.830 3.780 0.625 0.594 2S344-1588-152CTD ○ ● 0.625 0.060 1.315 1.830 3.780 0.625 0.594 2S344-1588-229CTD ○ ● 0.625 0.090 1.315 1.830 3.780 0.625 0.594 2S344-1588-305CTD ○ ● 0.625 0.120 1.315 1.830 3.780 0.625 0.594 2S344-1588-483CTD ○ ● 0.625 0.190 1.315 1.830 3.780 0.625 0.594 ● = First choice ○ = Good choice 242
