Цельные круглые инструменты | Инструменты фрезерования

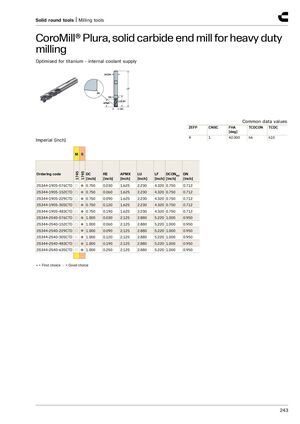

CoroMill® Plura, твердосплавная концевая фреза для тяжелого фрезерования
Оптимизирована для титана - внутренняя система подачи СОЖ
| Артикул | DC [дюйм] | RE [дюйм] | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | DN [дюйм] |
|---|---|---|---|---|---|---|---|
| 2S344-1905-076CTD | 0.750 | 0.030 | 1.625 | 2.230 | 4.320 | 0.750 | 0.712 |
| 2S344-1905-152CTD | 0.750 | 0.060 | 1.625 | 2.230 | 4.320 | 0.750 | 0.712 |
| 2S344-1905-229CTD | 0.750 | 0.090 | 1.625 | 2.230 | 4.320 | 0.750 | 0.712 |
| 2S344-1905-305CTD | 0.750 | 0.120 | 1.625 | 2.230 | 4.320 | 0.750 | 0.712 |
| 2S344-1905-483CTD | 0.750 | 0.190 | 1.625 | 2.230 | 4.320 | 0.750 | 0.712 |
| 2S344-2540-076CTD | 1.000 | 0.030 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2S344-2540-152CTD | 1.000 | 0.060 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2S344-2540-229CTD | 1.000 | 0.090 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2S344-2540-305CTD | 1.000 | 0.120 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2S344-2540-483CTD | 1.000 | 0.190 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2S344-2540-635CTD | 1.000 | 0.250 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
