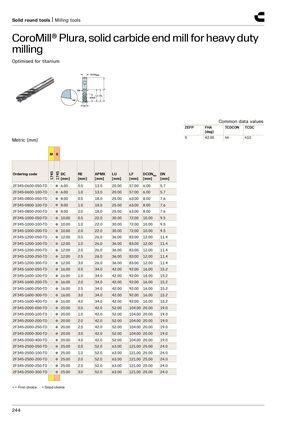

Solid round tools | Milling tools CoroMill® Plura, solid carbide end mill for heavy duty milling Optimised for titanium Common data values ZEFP FHA TCDCON TCDC [deg] 5 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F345-0600-050-TD ○ ● 6.00 0.5 13.0 20.00 57.00 6.00 5.7 2F345-0600-100-TD ○ ● 6.00 1.0 13.0 20.00 57.00 6.00 5.7 2F345-0800-050-TD ○ ● 8.00 0.5 18.0 25.00 63.00 8.00 7.6 2F345-0800-100-TD ○ ● 8.00 1.0 18.0 25.00 63.00 8.00 7.6 2F345-0800-200-TD ○ ● 8.00 2.0 18.0 25.00 63.00 8.00 7.6 2F345-1000-050-TD ○ ● 10.00 0.5 22.0 30.00 72.00 10.00 9.5 2F345-1000-100-TD ○ ● 10.00 1.0 22.0 30.00 72.00 10.00 9.5 2F345-1000-200-TD ○ ● 10.00 2.0 22.0 30.00 72.00 10.00 9.5 2F345-1200-050-TD ○ ● 12.00 0.5 26.0 36.00 83.00 12.00 11.4 2F345-1200-100-TD ○ ● 12.00 1.0 26.0 36.00 83.00 12.00 11.4 2F345-1200-200-TD ○ ● 12.00 2.0 26.0 36.00 83.00 12.00 11.4 2F345-1200-250-TD ○ ● 12.00 2.5 26.0 36.00 83.00 12.00 11.4 2F345-1200-300-TD ○ ● 12.00 3.0 26.0 36.00 83.00 12.00 11.4 2F345-1600-050-TD ○ ● 16.00 0.5 34.0 42.00 92.00 16.00 15.2 2F345-1600-100-TD ○ ● 16.00 1.0 34.0 42.00 92.00 16.00 15.2 2F345-1600-200-TD ○ ● 16.00 2.0 34.0 42.00 92.00 16.00 15.2 2F345-1600-250-TD ○ ● 16.00 2.5 34.0 42.00 92.00 16.00 15.2 2F345-1600-300-TD ○ ● 16.00 3.0 34.0 42.00 92.00 16.00 15.2 2F345-1600-400-TD ○ ● 16.00 4.0 34.0 42.00 92.00 16.00 15.2 2F345-2000-050-TD ○ ● 20.00 0.5 42.0 52.00 104.00 20.00 19.0 2F345-2000-100-TD ○ ● 20.00 1.0 42.0 52.00 104.00 20.00 19.0 2F345-2000-200-TD ○ ● 20.00 2.0 42.0 52.00 104.00 20.00 19.0 2F345-2000-250-TD ○ ● 20.00 2.5 42.0 52.00 104.00 20.00 19.0 2F345-2000-300-TD ○ ● 20.00 3.0 42.0 52.00 104.00 20.00 19.0 2F345-2000-400-TD ○ ● 20.00 4.0 42.0 52.00 104.00 20.00 19.0 2F345-2500-050-TD ○ ● 25.00 0.5 52.0 63.00 121.00 25.00 24.0 2F345-2500-100-TD ○ ● 25.00 1.0 52.0 63.00 121.00 25.00 24.0 2F345-2500-200-TD ○ ● 25.00 2.0 52.0 63.00 121.00 25.00 24.0 2F345-2500-250-TD ○ ● 25.00 2.5 52.0 63.00 121.00 25.00 24.0 2F345-2500-300-TD ○ ● 25.00 3.0 52.0 63.00 121.00 25.00 24.0 ● = First choice ○ = Good choice 244
