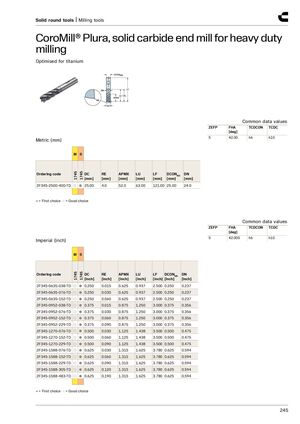

Solid round tools | Milling tools CoroMill® Plura, solid carbide end mill for heavy duty milling​​ Optimised for titanium Common data values ZEFP FHA TCDCON TCDC [deg] 5 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F345-2500-400-TD ○ ● 25.00 4.0 52.0 63.00 121.00 25.00 24.0 ● = First choice ○ = Good choice Common data values ZEFP FHA TCDCON TCDC [deg] 5 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F345-0635-038-TD ○ ● 0.250 0.015 0.625 0.937 2.500 0.250 0.237 2F345-0635-076-TD ○ ● 0.250 0.030 0.625 0.937 2.500 0.250 0.237 2F345-0635-152-TD ○ ● 0.250 0.060 0.625 0.937 2.500 0.250 0.237 2F345-0952-038-TD ○ ● 0.375 0.015 0.875 1.250 3.000 0.375 0.356 2F345-0952-076-TD ○ ● 0.375 0.030 0.875 1.250 3.000 0.375 0.356 2F345-0952-152-TD ○ ● 0.375 0.060 0.875 1.250 3.000 0.375 0.356 2F345-0952-229-TD ○ ● 0.375 0.090 0.875 1.250 3.000 0.375 0.356 2F345-1270-076-TD ○ ● 0.500 0.030 1.125 1.438 3.500 0.500 0.475 2F345-1270-152-TD ○ ● 0.500 0.060 1.125 1.438 3.500 0.500 0.475 2F345-1270-229-TD ○ ● 0.500 0.090 1.125 1.438 3.500 0.500 0.475 2F345-1588-076-TD ○ ● 0.625 0.030 1.315 1.625 3.780 0.625 0.594 2F345-1588-152-TD ○ ● 0.625 0.060 1.315 1.625 3.780 0.625 0.594 2F345-1588-229-TD ○ ● 0.625 0.090 1.315 1.625 3.780 0.625 0.594 2F345-1588-305-TD ○ ● 0.625 0.120 1.315 1.625 3.780 0.625 0.594 2F345-1588-483-TD ○ ● 0.625 0.190 1.315 1.625 3.780 0.625 0.594 ● = First choice ○ = Good choice 245
