Цельные круглые инструменты | Инструменты фрезерования

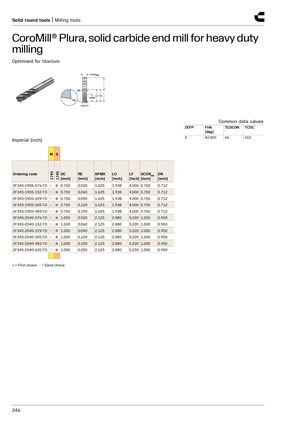

CoroMill® Plura, твердосплавная концевая фреза для тяжелого фрезерования
Оптимизирована для титана
| Артикул | DC [дюйм] | RE [дюйм] | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | DN [дюйм] |
|---|---|---|---|---|---|---|---|
| 2F345-1905-076-TD | 0.750 | 0.030 | 1.625 | 1.938 | 4.000 | 0.750 | 0.712 |
| 2F345-1905-152-TD | 0.750 | 0.060 | 1.625 | 1.938 | 4.000 | 0.750 | 0.712 |
| 2F345-1905-229-TD | 0.750 | 0.090 | 1.625 | 1.938 | 4.000 | 0.750 | 0.712 |
| 2F345-1905-305-TD | 0.750 | 0.120 | 1.625 | 1.938 | 4.000 | 0.750 | 0.712 |
| 2F345-1905-483-TD | 0.750 | 0.190 | 1.625 | 1.938 | 4.000 | 0.750 | 0.712 |
| 2F345-2540-076-TD | 1.000 | 0.030 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2F345-2540-152-TD | 1.000 | 0.060 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2F345-2540-229-TD | 1.000 | 0.090 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2F345-2540-305-TD | 1.000 | 0.120 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2F345-2540-483-TD | 1.000 | 0.190 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
| 2F345-2540-635-TD | 1.000 | 0.250 | 2.125 | 2.880 | 5.220 | 1.000 | 0.950 |
