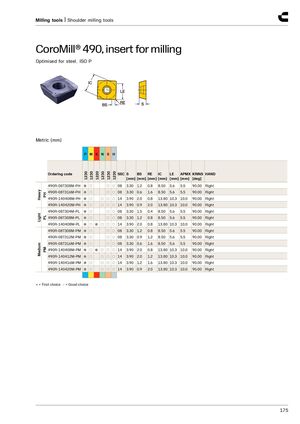

Milling tools | Shoulder milling tools CoroMill® 490, insert for milling​​ Optimised for steel, ISO P Metric (mm) P M K N S H 1230 1230 1220 1230 1230 1230 Ordering code SSC S BS RE IC LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] 490R-08T308M-PH ●○ ○ ○ 08 3.30 1.2 0.8 8.50 5.6 5.5 90.00 Right 490R-08T316M-PH ● ○ ○ ○ 08 Heavy 3.30 0.6 1.6 8.50 5.6 5.5 90.00 Right PH 490R-140408M-PH ● ○ ○ ○ ○ 14 3.90 2.0 0.8 13.80 10.3 10.0 90.00 Right 490R-140420M-PH ● ○ ○ ○ ○ 14 3.90 0.9 2.0 13.80 10.3 10.0 90.00 Right 490R-08T304M-PL ● ○ ○ ○ 08 3.30 1.5 0.4 8.50 5.6 5.5 90.00 Right Light 490R-08T308M-PL ● ○ ○ ○ 08 PL 3.30 1.2 0.8 8.50 5.6 5.5 90.00 Right 490R-140408M-PL ● ○ ● ○ ○ ○ 14 3.90 2.0 0.8 13.80 10.3 10.0 90.00 Right 490R-08T308M-PM ● ○ ○ ○ 08 3.30 1.2 0.8 8.50 5.6 5.5 90.00 Right 490R-08T312M-PM ● ○ ○ ○ 08 3.30 0.9 1.2 8.50 5.6 5.5 90.00 Right 490R-08T316M-PM ● ○ ○ ○ 08 3.30 0.6 1.6 8.50 5.6 5.5 90.00 Right Medium 490R-140408M-PM ● ○ ● ○ ○ ○ 14 PM 3.90 2.0 0.8 13.80 10.3 10.0 90.00 Right 490R-140412M-PM ● ○ ○ ○ ○ 14 3.90 2.0 1.2 13.80 10.3 10.0 90.00 Right 490R-140416M-PM ● ○ ○ ○ ○ 14 3.90 1.2 1.6 13.80 10.3 10.0 90.00 Right 490R-140420M-PM ● ○ ○ ○ ○ 14 3.90 0.9 2.0 13.80 10.3 10.0 90.00 Right ● = First choice ○ = Good choice 175
