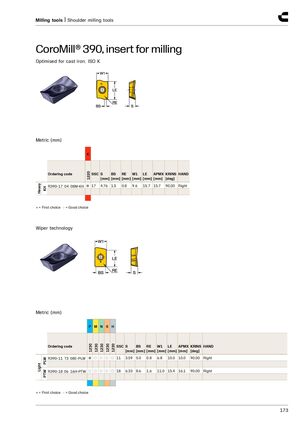

Milling tools | Shoulder milling tools CoroMill® 390, insert for milling Optimised for cast iron, ISO K Metric (mm) K 1220 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] ● 17 Heavy R390-17 04 08M-KH 4.76 1.5 0.8 9.6 15.7 15.7 90.00 Right KH ● = First choice ○ = Good choice Wiper technology Metric (mm) P M N S H 1230 1230 1230 1230 1230 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] R390-11 T3 08E-PLW ● ○ ○ ○ ○ 11 3.59 5.0 0.8 6.8 10.0 10.0 90.00 Right PLW Light R390-18 06 16H-PTW ○ ○ ○ ○ ○ 18 6.33 8.6 1.6 11.0 15.4 16.1 90.00 Right PTW ● = First choice ○ = Good choice 173
