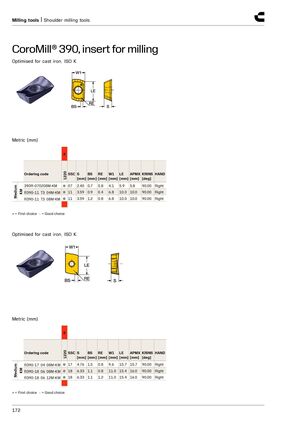

Milling tools | Shoulder milling tools CoroMill® 390, insert for milling Optimised for cast iron, ISO K Metric (mm) K 1220 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] 390R-070208M-KM ● 07 2.40 0.7 0.8 4.1 5.9 5.8 90.00 Right Medium R390-11 T3 04M-KM ● 11 KM 3.59 0.9 0.4 6.8 10.0 10.0 90.00 Right R390-11 T3 08M-KM ● 11 3.59 1.2 0.8 6.8 10.0 10.0 90.00 Right ● = First choice ○ = Good choice Optimised for cast iron, ISO K Metric (mm) K 1220 Ordering code SSC S BS RE W1 LE APMX KRINS HAND [mm] [mm] [mm] [mm] [mm] [mm] [deg] R390-17 04 08M-KM ● 17 4.76 1.5 0.8 9.6 15.7 15.7 90.00 Right Medium ● 18 KM R390-18 06 08M-KM 6.33 1.1 0.8 11.0 15.4 16.0 90.00 Right R390-18 06 12M-KM ● 18 6.33 1.1 1.2 11.0 15.4 16.0 90.00 Right ● = First choice ○ = Good choice 172
