Фрезерные инструменты | Плечевые фрезы

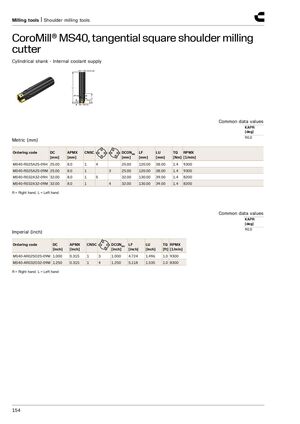

CoroMill® MS40, касательная квадратная плечевая фреза
Цилиндрический хвостовик - внутренняя подача СОЖ
Метрические размеры (мм)
Общие значения данных: KAPR = 90,0°
| Артикул | DC (мм) | APMX (мм) | CNSC | DCONMS (мм) | LF (мм) | LU (мм) | TQ (Нм) | RPMX (об/мин) |
|---|---|---|---|---|---|---|---|---|
| MS40-R025A25-09H | 25.00 | 8.0 | 1 | 25.00 | 120.00 | 38.00 | 1.4 | 9300 |
| MS40-R025A25-09M | 25.00 | 8.0 | 1 | 25.00 | 120.00 | 38.00 | 1.4 | 9300 |
| MS40-R032A32-09H | 32.00 | 8.0 | 1 | 32.00 | 130.00 | 39.00 | 1.4 | 8200 |
| MS40-R032A32-09M | 32.00 | 8.0 | 1 | 32.00 | 130.00 | 39.00 | 1.4 | 8200 |
Размеры в дюймах (inch)
Общие значения данных: KAPR = 90,0°
| Артикул | DC (дюйм) | APMX (дюйм) | CNSC | DCONMS (дюйм) | LF (дюйм) | LU (дюйм) | TQ (фунт-сила фут) | RPMX (об/мин) |
|---|---|---|---|---|---|---|---|---|
| MS40-AR025O25-09M | 1.000 | 0.315 | 1 | 1.000 | 4.724 | 1.496 | 1.0 | 9300 |
| MS40-AR032O32-09M | 1.250 | 0.315 | 1 | 1.250 | 5.118 | 1.535 | 1.0 | 8300 |
Р = Правое вращение, Л = Левое вращение
