Фрезерные инструменты | Плечевые фрезы

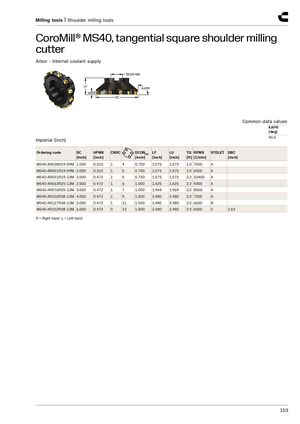

CoroMill® MS40, касательная квадратная плечевая фреза
Державка - внутренняя подача СОЖ
Размеры в дюймах (inch)
Общие значения данных: KAPR = 90,0°
| Артикул | DC (дюйм) | APMX (дюйм) | CNSC | DCONMS (дюйм) | LF (дюйм) | LU (дюйм) | TQ (фунт-сила фут) | RPMX (об/мин) | STDLET | DBC (дюйм) |
|---|---|---|---|---|---|---|---|---|---|---|
| MS40-AR038R19-09M | 1.500 | 0.315 | 1 | 0.750 | 1.575 | 1.575 | 1.0 | 7500 | A | |
| MS40-AR051R19-09M | 2.000 | 0.315 | 1 | 0.750 | 1.575 | 1.575 | 1.0 | 6500 | A | |
| MS40-AR051R19-13M | 2.000 | 0.472 | 1 | 0.750 | 1.575 | 1.575 | 2.2 | 10400 | A | |
| MS40-AR063R25-13M | 2.500 | 0.472 | 1 | 1.000 | 1.625 | 1.625 | 2.2 | 9300 | A | |
| MS40-AR076R25-13M | 3.000 | 0.472 | 1 | 1.000 | 1.969 | 1.969 | 2.2 | 8500 | A | |
| MS40-AR102R38-13M | 4.000 | 0.472 | 1 | 1.500 | 2.480 | 2.480 | 2.2 | 7300 | A | |
| MS40-AR127R38-13M | 5.000 | 0.472 | 1 | 1.500 | 2.480 | 2.480 | 2.2 | 6600 | B | |
| MS40-AR152R38-13M | 6.000 | 0.472 | 0 | 1.500 | 2.480 | 2.480 | 2.2 | 6000 | C | 2.63 |
Р = Правое вращение, Л = Левое вращение
