Инструменты с круглым корпусом | Фрезы

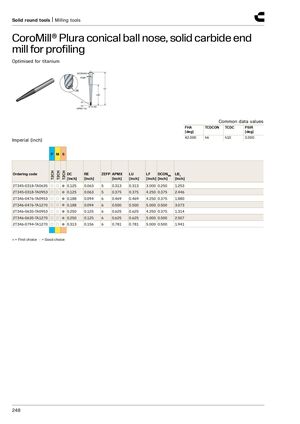

CoroMill® Plura коническая шаровая фреза, монолитная твердосплавная фреза для профилирования
Оптимизирована для титана
Общие значения данных
| FHA [град] | TCDCON | TCDC | PSIR [град] |
|---|---|---|---|
| 42.000 | h6 | h10 | 3.000 |
Стандартные размеры (дюйм)
| Артикул | DC [дюйм] | RE [дюйм] | ZEFP | APMX [дюйм] | LU [дюйм] | LF [дюйм] | DCONMS [дюйм] | LB 1 [дюйм] | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2T345-0318-TA0635 | ○ | ○ | ● | 0.125 | 0.063 | 5 | 0.313 | 0.313 | 3.000 | 0.250 | 1.253 |
| 2T345-0318-TA0953 | ○ | ○ | ● | 0.125 | 0.063 | 5 | 0.375 | 0.375 | 4.250 | 0.375 | 2.446 |
| 2T346-0476-TA0953 | ○ | ○ | ● | 0.188 | 0.094 | 6 | 0.469 | 0.469 | 4.250 | 0.375 | 1.880 |
| 2T346-0476-TA1270 | ○ | ○ | ● | 0.188 | 0.094 | 6 | 0.500 | 0.500 | 5.000 | 0.500 | 3.073 |
| 2T346-0635-TA0953 | ○ | ○ | ● | 0.250 | 0.125 | 6 | 0.625 | 0.625 | 4.250 | 0.375 | 1.314 |
| 2T346-0635-TA1270 | ○ | ○ | ● | 0.250 | 0.125 | 6 | 0.625 | 0.625 | 5.000 | 0.500 | 2.507 |
| 2T346-0794-TA1270 | ○ | ○ | ● | 0.313 | 0.156 | 6 | 0.781 | 0.781 | 5.000 | 0.500 | 1.941 |
● Первый выбор ○ Хороший выбор
