Фрезерные инструменты | Инструменты для профильного фрезерования

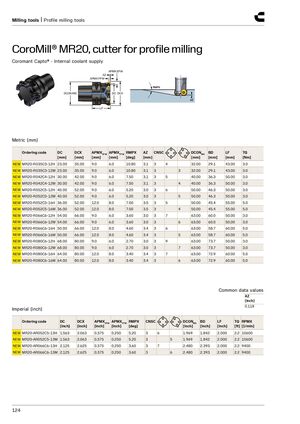

CoroMill® MR20, фреза для профильного фрезерования
Coromant Capto® - Внутренняя подача СОЖ
| Метрические размеры (мм) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [мм] | DCX [мм] | APMX EFW [мм] | APMX FFW [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | |
| NEW MR20-R035C3-12H | 23.00 | 35.00 | 9.0 | 6.0 | 10.80 | 3.1 | 3 | 4 | 32.00 | 29.1 | 43.00 | 3.0 |
| NEW MR20-R035C3-12M | 23.00 | 35.00 | 9.0 | 6.0 | 10.80 | 3.1 | 3 | 3 | 32.00 | 29.1 | 43.00 | 3.0 |
| NEW MR20-R042C4-12H | 30.00 | 42.00 | 9.0 | 6.0 | 7.50 | 3.1 | 3 | 5 | 40.00 | 36.3 | 50.00 | 3.0 |
| NEW MR20-R042C4-12M | 30.00 | 42.00 | 9.0 | 6.0 | 7.50 | 3.1 | 3 | 4 | 40.00 | 36.3 | 50.00 | 3.0 |
| NEW MR20-R052C5-12H | 40.00 | 52.00 | 9.0 | 6.0 | 5.20 | 3.0 | 3 | 6 | 50.00 | 46.3 | 50.00 | 3.0 |
| NEW MR20-R052C5-12M | 40.00 | 52.00 | 9.0 | 6.0 | 5.20 | 3.0 | 3 | 5 | 50.00 | 46.3 | 50.00 | 3.0 |
| NEW MR20-R052C5-16H | 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.5 | 3 | 5 | 50.00 | 45.4 | 55.00 | 5.0 |
| NEW MR20-R052C5-16M | 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.5 | 3 | 4 | 50.00 | 45.4 | 55.00 | 5.0 |
| NEW MR20-R066C6-12H | 54.00 | 66.00 | 9.0 | 6.0 | 3.60 | 3.0 | 3 | 7 | 63.00 | 60.0 | 50.00 | 3.0 |
| NEW MR20-R066C6-12M | 54.00 | 66.00 | 9.0 | 6.0 | 3.60 | 3.0 | 3 | 6 | 63.00 | 60.0 | 50.00 | 3.0 |
| NEW MR20-R066C6-16H | 50.00 | 66.00 | 12.0 | 8.0 | 4.60 | 3.4 | 3 | 6 | 63.00 | 58.7 | 60.00 | 5.0 |
| NEW MR20-R066C6-16M | 50.00 | 66.00 | 12.0 | 8.0 | 4.60 | 3.4 | 3 | 5 | 63.00 | 58.7 | 60.00 | 5.0 |
| NEW MR20-R080C6-12H | 68.00 | 80.00 | 9.0 | 6.0 | 2.70 | 3.0 | 3 | 9 | 63.00 | 73.7 | 50.00 | 3.0 |
| NEW MR20-R080C6-12M | 68.00 | 80.00 | 9.0 | 6.0 | 2.70 | 3.0 | 3 | 7 | 63.00 | 73.7 | 50.00 | 3.0 |
| NEW MR20-R080C6-16H | 64.00 | 80.00 | 12.0 | 8.0 | 3.40 | 3.4 | 3 | 7 | 63.00 | 72.9 | 60.00 | 5.0 |
| NEW MR20-R080C6-16M | 64.00 | 80.00 | 12.0 | 8.0 | 3.40 | 3.4 | 3 | 6 | 63.00 | 72.9 | 60.00 | 5.0 |
Общие значения данных
| Параметр | Значение |
|---|---|
| AZ [дюйм] | 0.118 |
| Дюймовые размеры (дюймы) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [дюйм] | DCX [дюйм] | APMX EFW [дюйм] | APMX FFW [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LF [дюйм] | TQ [фут-фунт] | RPMX [об/мин] | |
| NEW MR20-AR052C5-13H | 1.563 | 2.063 | 0.375 | 0.250 | 5.20 | 3 | 6 | 1.969 | 1.842 | 2.000 | 2.2 | 10600 |
| NEW MR20-AR052C5-13M | 1.563 | 2.063 | 0.375 | 0.250 | 5.20 | 3 | 5 | 1.969 | 1.842 | 2.000 | 2.2 | 10600 |
| NEW MR20-AR066C6-13H | 2.125 | 2.625 | 0.375 | 0.250 | 3.60 | 3 | 7 | 2.480 | 2.393 | 2.000 | 2.2 | 9400 |
| NEW MR20-AR066C6-13M | 2.125 | 2.625 | 0.375 | 0.250 | 3.60 | 3 | 6 | 2.480 | 2.393 | 2.000 | 2.2 | 9400 |
