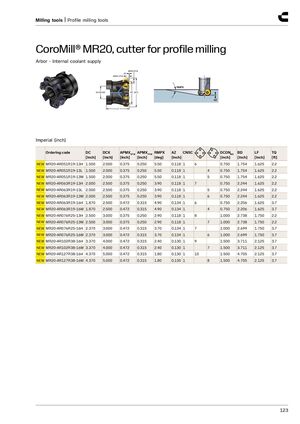

Milling tools | Profile milling tools CoroMill® MR20, cutter for profile milling​​ Arbor - Internal coolant supply APMX EFW AZ APMX FFW DCON MS DC DCX LF Imperial (inch) Ordering code DC DCX APMX EFW APMX FFW RMPX _ _ AZ CNSC DCONMS BD LF TQ [inch] [inch] [inch] [inch] [deg] [inch] [inch] [inch] [inch] [ft] NEW MR20-AR051R19-13H 1.500 2.000 0.375 0.250 5.50 0.118 1 6 0.750 1.754 1.625 2.2 NEW MR20-AR051R19-13L 1.500 2.000 0.375 0.250 5.50 0.118 1 4 0.750 1.754 1.625 2.2 NEW MR20-AR051R19-13M 1.500 2.000 0.375 0.250 5.50 0.118 1 5 0.750 1.754 1.625 2.2 NEW MR20-AR063R19-13H 2.000 2.500 0.375 0.250 3.90 0.118 1 7 0.750 2.244 1.625 2.2 NEW MR20-AR063R19-13L 2.000 2.500 0.375 0.250 3.90 0.118 1 5 0.750 2.244 1.625 2.2 NEW MR20-AR063R19-13M 2.000 2.500 0.375 0.250 3.90 0.118 1 6 0.750 2.244 1.625 2.2 NEW MR20-AR063R19-16H 1.870 2.500 0.472 0.315 4.90 0.134 1 6 0.750 2.206 1.625 3.7 NEW MR20-AR063R19-16M 1.870 2.500 0.472 0.315 4.90 0.134 1 4 0.750 2.206 1.625 3.7 NEW MR20-AR076R25-13H 2.500 3.000 0.375 0.250 2.90 0.118 1 8 1.000 2.738 1.750 2.2 NEW MR20-AR076R25-13M 2.500 3.000 0.375 0.250 2.90 0.118 1 7 1.000 2.738 1.750 2.2 NEW MR20-AR076R25-16H 2.370 3.000 0.472 0.315 3.70 0.134 1 7 1.000 2.699 1.750 3.7 NEW MR20-AR076R25-16M 2.370 3.000 0.472 0.315 3.70 0.134 1 6 1.000 2.699 1.750 3.7 NEW MR20-AR102R38-16H 3.370 4.000 0.472 0.315 2.40 0.130 1 9 1.500 3.711 2.125 3.7 NEW MR20-AR102R38-16M 3.370 4.000 0.472 0.315 2.40 0.130 1 7 1.500 3.711 2.125 3.7 NEW MR20-AR127R38-16H 4.370 5.000 0.472 0.315 1.80 0.130 1 10 1.500 4.705 2.125 3.7 NEW MR20-AR127R38-16M 4.370 5.000 0.472 0.315 1.80 0.130 1 8 1.500 4.705 2.125 3.7 ​ 123
