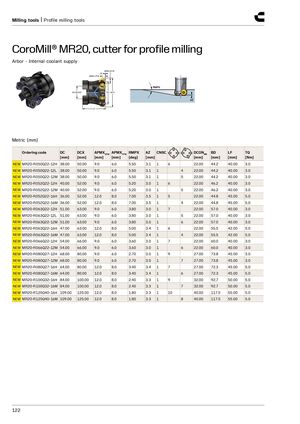

Фрезерные инструменты | Инструменты для профильного фрезерования
CoroMill® MR20, фреза для профильного фрезерования
Хвостовик - Внутренняя подача СОЖ
| Метрические размеры (мм) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [мм] | DCX [мм] | APMX EFW [мм] | APMX FFW [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | |
| NEW MR20-R050Q22-12H | 38.00 | 50.00 | 9.0 | 6.0 | 5.50 | 3.1 | 1 | 6 | 22.00 | 44.2 | 40.00 | 3.0 |
| NEW MR20-R050Q22-12L | 38.00 | 50.00 | 9.0 | 6.0 | 5.50 | 3.1 | 1 | 4 | 22.00 | 44.2 | 40.00 | 3.0 |
| NEW MR20-R050Q22-12M | 38.00 | 50.00 | 9.0 | 6.0 | 5.50 | 3.1 | 1 | 5 | 22.00 | 44.2 | 40.00 | 3.0 |
| NEW MR20-R052Q22-12H | 40.00 | 52.00 | 9.0 | 6.0 | 5.20 | 3.0 | 1 | 6 | 22.00 | 46.2 | 40.00 | 3.0 |
| NEW MR20-R052Q22-12M | 40.00 | 52.00 | 9.0 | 6.0 | 5.20 | 3.0 | 1 | 5 | 22.00 | 46.2 | 40.00 | 3.0 |
| NEW MR20-R052Q22-16H | 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.5 | 1 | 5 | 22.00 | 44.8 | 45.00 | 5.0 |
| NEW MR20-R052Q22-16M | 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.5 | 1 | 4 | 22.00 | 44.8 | 45.00 | 5.0 |
| NEW MR20-R063Q22-12H | 51.00 | 63.00 | 9.0 | 6.0 | 3.80 | 3.0 | 1 | 7 | 22.00 | 57.0 | 40.00 | 3.0 |
| NEW MR20-R063Q22-12L | 51.00 | 63.00 | 9.0 | 6.0 | 3.80 | 3.0 | 1 | 5 | 22.00 | 57.0 | 40.00 | 3.0 |
| NEW MR20-R063Q22-12M | 51.00 | 63.00 | 9.0 | 6.0 | 3.80 | 3.0 | 1 | 6 | 22.00 | 57.0 | 40.00 | 3.0 |
| NEW MR20-R063Q22-16H | 47.00 | 63.00 | 12.0 | 8.0 | 5.00 | 3.4 | 1 | 6 | 22.00 | 55.5 | 42.00 | 5.0 |
| NEW MR20-R063Q22-16M | 47.00 | 63.00 | 12.0 | 8.0 | 5.00 | 3.4 | 1 | 4 | 22.00 | 55.5 | 42.00 | 5.0 |
| NEW MR20-R066Q22-12H | 54.00 | 66.00 | 9.0 | 6.0 | 3.60 | 3.0 | 1 | 7 | 22.00 | 60.0 | 40.00 | 3.0 |
| NEW MR20-R066Q22-12M | 54.00 | 66.00 | 9.0 | 6.0 | 3.60 | 3.0 | 1 | 6 | 22.00 | 60.0 | 40.00 | 3.0 |
| NEW MR20-R080Q27-12H | 68.00 | 80.00 | 9.0 | 6.0 | 2.70 | 3.0 | 1 | 9 | 27.00 | 73.8 | 45.00 | 3.0 |
| NEW MR20-R080Q27-12M | 68.00 | 80.00 | 9.0 | 6.0 | 2.70 | 3.0 | 1 | 7 | 27.00 | 73.8 | 45.00 | 3.0 |
| NEW MR20-R080Q27-16H | 64.00 | 80.00 | 12.0 | 8.0 | 3.40 | 3.4 | 1 | 7 | 27.00 | 72.3 | 45.00 | 5.0 |
| NEW MR20-R080Q27-16M | 64.00 | 80.00 | 12.0 | 8.0 | 3.40 | 3.4 | 1 | 6 | 27.00 | 72.3 | 45.00 | 5.0 |
| NEW MR20-R100Q32-16H | 84.00 | 100.00 | 12.0 | 8.0 | 2.40 | 3.3 | 1 | 9 | 32.00 | 92.7 | 50.00 | 5.0 |
| NEW MR20-R100Q32-16M | 84.00 | 100.00 | 12.0 | 8.0 | 2.40 | 3.3 | 1 | 7 | 32.00 | 92.7 | 50.00 | 5.0 |
| NEW MR20-R125Q40-16H | 109.00 | 125.00 | 12.0 | 8.0 | 1.80 | 3.3 | 1 | 10 | 40.00 | 117.5 | 55.00 | 5.0 |
| NEW MR20-R125Q40-16M | 109.00 | 125.00 | 12.0 | 8.0 | 1.80 | 3.3 | 1 | 8 | 40.00 | 117.5 | 55.00 | 5.0 |
