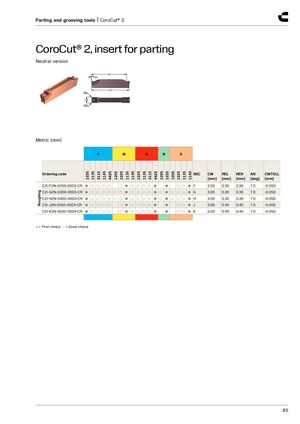

Parting and grooving tools | CoroCut® 2 CoroCut® 2, insert for parting Neutral version CDX AN LIG REL CW RER Metric (mm) P M K N S 1225 1135 3115 1145 4425 1205 1225 1135 1145 1225 1135 3115 4425 1205 1225 1205 1225 1135 1145 Ordering code SSC CW REL RER AN CWTOLL [mm] [mm] [mm] [deg] [mm] C2I-F2N-0250-0003-CR ●○○○○ ○●○○○○● ● ○○●F 2.50 0.30 0.30 7.0 -0.050 C2I-G2N-0300-0003-CR ● ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ○ ● ○ ● ○ ○ ○ ● G 3.00 0.30 0.30 7.0 -0.050 Roughing C2I-H2N-0400-0003-CR ● ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ○ ● ○ ● ○ ○ ○ ● H 4.00 0.30 0.30 7.0 -0.050 C2I-J2N-0500-0004-CR ● ○ ○ ○ ○ ○●○○○○● ● ○○●J 5.00 0.40 0.40 7.0 -0.050 C2I-K2N-0600-0004-CR ● ○ ○ ○ ○ ○●○○○○● ● ○○●K 6.00 0.40 0.40 7.0 -0.050 ● = First choice ○ = Good choice 85
