Инструменты отрезки и нарезания канавок | CoroCut® 2

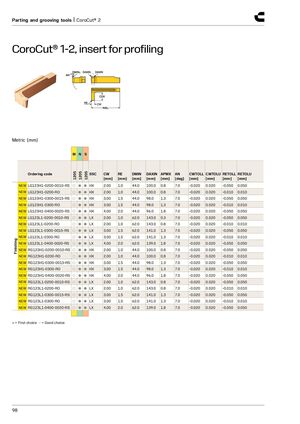

CoroCut® 1-2, пластина для профилирования. Чистовая обработка

Артикул SSC CW [мм] RE [мм] DMIN [мм] DAXIN [мм] APMX [град] AN [мм] CWTOLL [мм] CWTOLU [мм] RETOLL [мм] RETOLU [мм]
NEW LG123H1-0200-0010-RS HX 2.00 1.0 44.0 100.0 0.8 7.0 -0.020 0.020 -0.050 0.050
NEW LG123H1-0200-RO HX 2.00 1.0 44.0 100.0 0.8 7.0 -0.020 0.020 -0.010 0.010
NEW LG123H1-0300-0015-RS HX 3.00 1.5 44.0 98.0 1.3 7.0 -0.020 0.020 -0.050 0.050
NEW LG123H1-0300-RO HX 3.00 1.5 44.0 98.0 1.3 7.0 -0.020 0.020 -0.010 0.010
NEW LG123H1-0400-0020-RS HX 4.00 2.0 44.0 96.0 1.8 7.0 -0.020 0.020 -0.050 0.050
NEW LG123L1-0200-0010-RS LX 2.00 1.0 62.0 143.0 0.3 7.0 -0.020 0.020 -0.050 0.050
NEW LG123L1-0200-RO LX 2.00 1.0 62.0 143.0 0.8 7.0 -0.020 0.020 -0.010 0.010
NEW LG123L1-0300-0015-RS LX 3.00 1.5 62.0 141.0 1.3 7.0 -0.020 0.020 -0.050 0.050
NEW LG123L1-0300-RO LX 3.00 1.5 62.0 141.0 1.3 7.0 -0.020 0.020 -0.010 0.010
NEW LG123L1-0400-0020-RS LX 4.00 2.0 62.0 139.0 1.8 7.0 -0.020 0.020 -0.050 0.050
NEW RG123H1-0200-0010-RS HX 2.00 1.0 44.0 100.0 0.8 7.0 -0.020 0.020 -0.050 0.050
NEW RG123H1-0200-RO HX 2.00 1.0 44.0 100.0 0.8 7.0 -0.020 0.020 -0.010 0.010
NEW RG123H1-0300-0015-RS HX 3.00 1.5 44.0 98.0 1.3 7.0 -0.020 0.020 -0.050 0.050
NEW RG123H1-0300-RO HX 3.00 1.5 44.0 98.0 1.3 7.0 -0.020 0.020 -0.010 0.010
NEW RG123H1-0400-0020-RS HX 4.00 2.0 44.0 96.0 1.8 7.0 -0.020 0.020 -0.050 0.050
NEW RG123L1-0200-0010-RS LX 2.00 1.0 62.0 143.0 0.8 7.0 -0.020 0.020 -0.050 0.050
NEW RG123L1-0200-RO LX 2.00 1.0 62.0 143.0 0.8 7.0 -0.020 0.020 -0.010 0.010
NEW RG123L1-0300-0015-RS LX 3.00 1.5 62.0 141.0 1.3 7.0 -0.020 0.020 -0.050 0.050
NEW RG123L1-0300-RO LX 3.00 1.5 62.0 141.0 1.3 7.0 -0.020 0.020 -0.010 0.010
NEW RG123L1-0400-0020-RS LX 4.00 2.0 62.0 139.0 1.8 7.0 -0.020 0.020 -0.050 0.050

● = Первый выбор ○ = Хороший выбор
