Фрезерные инструменты | Плечевые фрезы

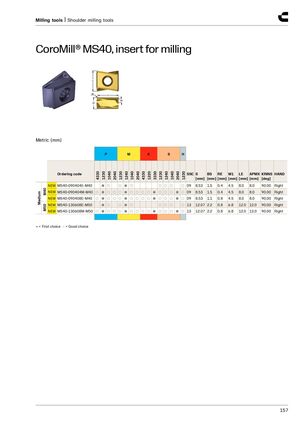

CoroMill® MS40, пластина для фрезерования
Средний режим M40/M50
Метрические размеры (мм)
| Артикул | Выбор | S (мм) | BS (мм) | RE (мм) | W1 (мм) | LE (мм) | APMX (мм) | KRINS (град) | Направление |
|---|---|---|---|---|---|---|---|---|---|
| MS40-090404E-M40 | ● (Первый выбор) | 8.53 | 1.5 | 0.4 | 4.5 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS40-090404M-M40 | ● (Первый выбор) | 8.53 | 1.5 | 0.4 | 4.5 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS40-090408E-M40 | ● (Первый выбор) | 8.53 | 1.1 | 0.8 | 4.5 | 8.0 | 8.0 | 90.00 | Правое вращение |
| MS40-130608E-M50 | ● (Первый выбор) | 12.07 | 2.2 | 0.8 | 6.8 | 12.0 | 12.0 | 90.00 | Правое вращение |
| MS40-130608M-M50 | ● (Первый выбор) | 12.07 | 2.2 | 0.8 | 6.8 | 12.0 | 12.0 | 90.00 | Правое вращение |
