Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

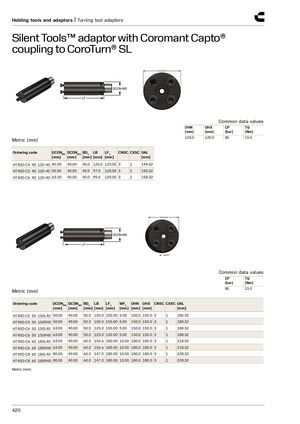

Адаптер Silent Tools™ с муфтой Coromant Capto® к CoroTurn® SL
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| HT40D-C4 40 120-40 | 40,00 | 40,00 | 40,0 | 120,0 | 120,00 | 120,0 | 120,0 | 3 | 1 | 144,32 |
| HT40D-C5 40 120-40 | 50,00 | 40,00 | 40,0 | 97,0 | 120,00 | 120,0 | 120,0 | 3 | 1 | 150,32 |
| HT40D-C6 40 120-40 | 63,00 | 40,00 | 40,0 | 95,0 | 120,00 | 120,0 | 120,0 | 3 | 1 | 158,32 |
Общие характеристики: OHN [мм] = 120,0, OHX [мм] = 120,0, CP [бар] = 80, TQ [Нм] = 15,0
Адаптер Silent Tools™ с муфтой Coromant Capto® к CoroTurn® SL
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | WF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT40D-C5 50 150L40 | 50,00 | 40,00 | 50,0 | 150,0 | 150,00 | 5,00 | 150,0 | 150,0 | 3 | 1 | 180,32 |
| HT40D-C5 50 150R40 | 50,00 | 40,00 | 50,0 | 150,0 | 150,00 | 5,00 | 150,0 | 150,0 | 3 | 1 | 180,32 |
| HT40D-C6 50 150L40 | 63,00 | 40,00 | 50,0 | 125,0 | 150,00 | 5,00 | 150,0 | 150,0 | 3 | 1 | 188,32 |
| HT40D-C6 50 150R40 | 63,00 | 40,00 | 50,0 | 125,0 | 150,00 | 5,00 | 150,0 | 150,0 | 3 | 1 | 188,32 |
| HT40D-C6 60 180L40 | 63,00 | 40,00 | 60,0 | 156,6 | 180,00 | 10,00 | 180,0 | 180,0 | 3 | 1 | 218,32 |
| HT40D-C6 60 180R40 | 63,00 | 40,00 | 60,0 | 156,6 | 180,00 | 10,00 | 180,0 | 180,0 | 3 | 1 | 218,32 |
| HT40D-C8 60 180L40 | 80,00 | 40,00 | 60,0 | 147,0 | 180,00 | 10,00 | 180,0 | 180,0 | 3 | 1 | 228,32 |
| HT40D-C8 60 180R40 | 80,00 | 40,00 | 60,0 | 147,0 | 180,00 | 10,00 | 180,0 | 180,0 | 3 | 1 | 228,32 |
Общие характеристики: CP [бар] = 80, TQ [Нм] = 15,0
