Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

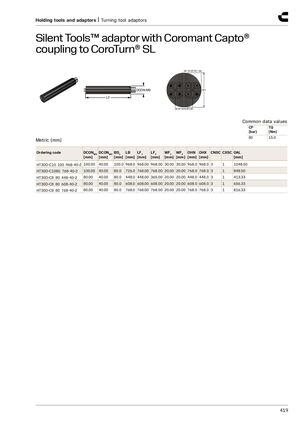

Адаптер Silent Tools™ с муфтой Coromant Capto® к CoroTurn® SL
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | LF 2 [мм] | WF 1 [мм] | WF 2 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-C10 100 968-40-2 | 100,00 | 40,00 | 100,0 | 968,0 | 968,00 | 968,00 | 30,00 | 30,00 | 968,0 | 968,0 | 3 | 1 | 1048,50 |
| HT30D-C1080 768-40-2 | 100,00 | 40,00 | 80,0 | 726,0 | 768,00 | 768,00 | 20,00 | 20,00 | 768,0 | 768,0 | 3 | 1 | 848,50 |
| HT30D-C8 80 448-40-2 | 80,00 | 40,00 | 80,0 | 448,0 | 448,00 | 365,00 | 20,00 | 20,00 | 448,0 | 448,0 | 3 | 1 | 413,33 |
| HT30D-C8 80 608-40-2 | 80,00 | 40,00 | 80,0 | 608,0 | 608,00 | 608,00 | 20,00 | 20,00 | 608,0 | 608,0 | 3 | 1 | 656,33 |
| HT30D-C8 80 768-40-2 | 80,00 | 40,00 | 80,0 | 768,0 | 768,00 | 768,00 | 20,00 | 20,00 | 768,0 | 768,0 | 3 | 1 | 816,33 |
Общие характеристики: CP [бар] = 80, TQ [Нм] = 15,0
