Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

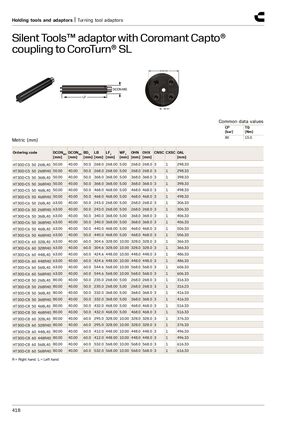

Адаптер Silent Tools™ с муфтой Coromant Capto® к CoroTurn® SL
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | WF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-C5 50 268L40 | 50,00 | 40,00 | 50,0 | 268,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 298,33 |
| HT30D-C5 50 268R40 | 50,00 | 40,00 | 50,0 | 268,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 298,33 |
| HT30D-C5 50 368L40 | 50,00 | 40,00 | 50,0 | 368,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 398,33 |
| HT30D-C5 50 368R40 | 50,00 | 40,00 | 50,0 | 368,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 398,33 |
| HT30D-C5 50 468L40 | 50,00 | 40,00 | 50,0 | 468,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 498,33 |
| HT30D-C5 50 468R40 | 50,00 | 40,00 | 50,0 | 468,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 498,33 |
| HT30D-C6 50 268L40 | 63,00 | 40,00 | 50,0 | 243,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 306,33 |
| HT30D-C6 50 268R40 | 63,00 | 40,00 | 50,0 | 243,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 306,33 |
| HT30D-C6 50 368L40 | 63,00 | 40,00 | 50,0 | 340,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 406,33 |
| HT30D-C6 50 368R40 | 63,00 | 40,00 | 50,0 | 340,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 406,33 |
| HT30D-C6 50 468L40 | 63,00 | 40,00 | 50,0 | 440,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 506,33 |
| HT30D-C6 50 468R40 | 63,00 | 40,00 | 50,0 | 440,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 506,33 |
| HT30D-C6 60 328L40 | 63,00 | 40,00 | 60,0 | 304,6 | 328,00 | 10,00 | 328,0 | 328,0 | 3 | 1 | 366,33 |
| HT30D-C6 60 328R40 | 63,00 | 40,00 | 60,0 | 304,6 | 328,00 | 10,00 | 328,0 | 328,0 | 3 | 1 | 366,33 |
| HT30D-C6 60 448L40 | 63,00 | 40,00 | 60,0 | 424,6 | 448,00 | 10,00 | 448,0 | 448,0 | 3 | 1 | 486,33 |
| HT30D-C6 60 448R40 | 63,00 | 40,00 | 60,0 | 424,6 | 448,00 | 10,00 | 448,0 | 448,0 | 3 | 1 | 486,33 |
| HT30D-C6 60 568L40 | 63,00 | 40,00 | 60,0 | 544,6 | 568,00 | 10,00 | 568,0 | 568,0 | 3 | 1 | 606,33 |
| HT30D-C6 60 568R40 | 63,00 | 40,00 | 60,0 | 544,6 | 568,00 | 10,00 | 568,0 | 568,0 | 3 | 1 | 606,33 |
| HT30D-C8 50 268L40 | 80,00 | 40,00 | 50,0 | 235,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 316,33 |
| HT30D-C8 50 268R40 | 80,00 | 40,00 | 50,0 | 235,0 | 268,00 | 5,00 | 268,0 | 268,0 | 3 | 1 | 316,23 |
| HT30D-C8 50 368L40 | 80,00 | 40,00 | 50,0 | 332,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 416,33 |
| HT30D-C8 50 368R40 | 80,00 | 40,00 | 50,0 | 332,0 | 368,00 | 5,00 | 368,0 | 368,0 | 3 | 1 | 416,33 |
| HT30D-C8 50 468L40 | 80,00 | 40,00 | 50,0 | 432,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 516,33 |
| HT30D-C8 50 468R40 | 80,00 | 40,00 | 50,0 | 432,0 | 468,00 | 5,00 | 468,0 | 468,0 | 3 | 1 | 516,33 |
| HT30D-C8 60 328L40 | 80,00 | 40,00 | 60,0 | 295,0 | 328,00 | 10,00 | 328,0 | 328,0 | 3 | 1 | 376,33 |
| HT30D-C8 60 328R40 | 80,00 | 40,00 | 60,0 | 295,0 | 328,00 | 10,00 | 328,0 | 328,0 | 3 | 1 | 376,33 |
| HT30D-C8 60 448L40 | 80,00 | 40,00 | 60,0 | 412,0 | 448,00 | 10,00 | 448,0 | 448,0 | 3 | 1 | 496,33 |
| HT30D-C8 60 448R40 | 80,00 | 40,00 | 60,0 | 412,0 | 448,00 | 10,00 | 448,0 | 448,0 | 3 | 1 | 496,33 |
| HT30D-C8 60 568L40 | 80,00 | 40,00 | 60,0 | 532,0 | 568,00 | 10,00 | 568,0 | 568,0 | 3 | 1 | 616,33 |
| HT30D-C8 60 568R40 | 80,00 | 40,00 | 60,0 | 532,0 | 568,00 | 10,00 | 568,0 | 568,0 | 3 | 1 | 616,33 |
Р = Правосторонний, Л = Левосторонний
Общие характеристики: CP [бар] = 80, TQ [Нм] = 15,0
