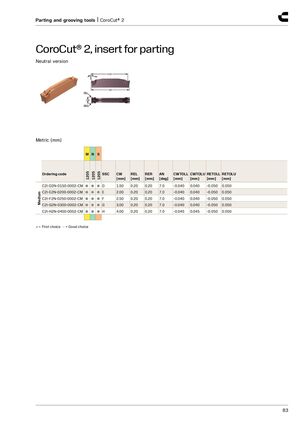

Пластины CoroCut® 2 для отрезки
Пластина для отрезки, нейтральное исполнение
Средняя обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2I-D2N-0150-0002-CM | D | 1.50 | 0.20 | 0.20 | 7.0 | -0.040 | 0.040 | -0.050 | 0.050 | |
| C2I-E2N-0200-0002-CM | E | 2.00 | 0.20 | 0.20 | 7.0 | -0.040 | 0.040 | -0.050 | 0.050 | |
| C2I-F2N-0250-0002-CM | F | 2.50 | 0.20 | 0.20 | 7.0 | -0.040 | 0.040 | -0.050 | 0.050 | |
| C2I-G2N-0300-0002-CM | G | 3.00 | 0.20 | 0.20 | 7.0 | -0.040 | 0.040 | -0.050 | 0.050 | |
| C2I-H2N-0400-0002-CM | H | 4.00 | 0.20 | 0.20 | 7.0 | -0.045 | 0.045 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
