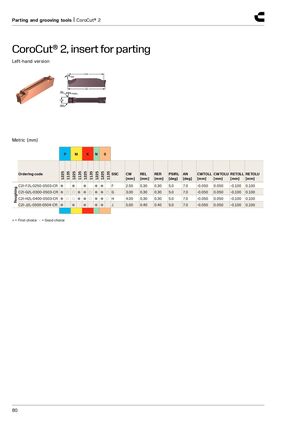

Пластины CoroCut® 2 для отрезки
Пластина для отрезки, левостороннее исполнение
Черновая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | PSIRL [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C2I-F2L-0250-0503-CR | F | 2.50 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 | |
| C2I-G2L-0300-0503-CR | G | 3.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 | |
| C2I-H2L-0400-0503-CR | H | 4.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 | |
| C2I-J2L-0500-0504-CR | J | 5.00 | 0.40 | 0.40 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
● = Первый выбор ○ = Хороший выбор
