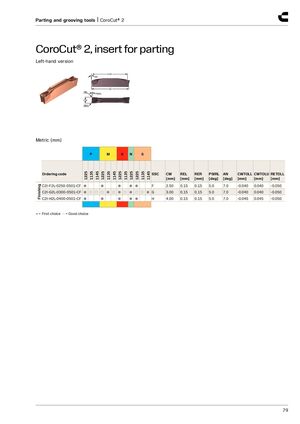

Пластины CoroCut® 2 для отрезки
Пластина для отрезки, левостороннее исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | PSIRL [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2I-F2L-0250-0501-CF | F | 2.50 | 0.15 | 0.15 | 5.0 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-G2L-0300-0501-CF | G | 3.00 | 0.15 | 0.15 | 5.0 | 7.0 | -0.040 | 0.040 | -0.050 | |
| C2I-H2L-0400-0501-CF | H | 4.00 | 0.15 | 0.15 | 5.0 | 7.0 | -0.045 | 0.045 | -0.050 |
● = Первый выбор ○ = Хороший выбор
