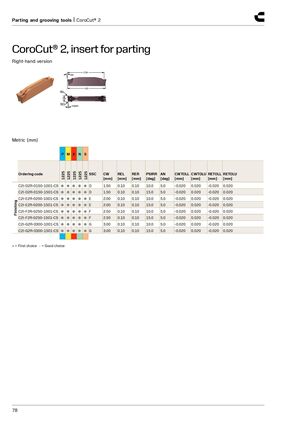

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, пластина для отрезки
Правая версия
Метрическая система (мм)
| Артикул заказа | SSC | CW [мм] | REL [мм] | RER [мм] | PSIRR [градус] | AN [градус] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2I-D2R-0150-1001-CS | D | 1.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-D2R-0150-1501-CS | D | 1.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-E2R-0200-1001-CS | E | 2.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
Чистовая обработка
| Артикул заказа | SSC | CW [мм] | REL [мм] | RER [мм] | PSIRR [градус] | AN [градус] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2I-E2R-0200-1501-CS | E | 2.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-F2R-0250-1001-CS | F | 2.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-F2R-0250-1501-CS | F | 2.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2R-0300-1001-CS | G | 3.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2R-0300-1501-CS | G | 3.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
● = Первый выбор, ○ = Хороший выбор
