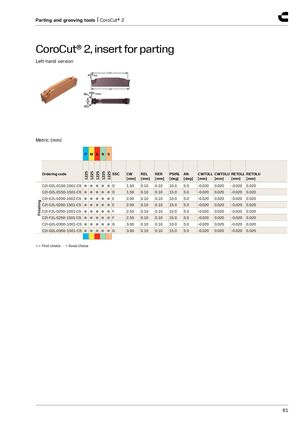

Пластины CoroCut® 2 для отрезки
Пластина для отрезки, левостороннее исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2I-D2L-0150-1001-CS | D | 1.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-D2L-0150-1501-CS | D | 1.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-E2L-0200-1001-CS | E | 2.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-E2L-0200-1501-CS | E | 2.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-F2L-0250-1001-CS | F | 2.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-F2L-0250-1501-CS | F | 2.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2L-0300-1001-CS | G | 3.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2L-0300-1501-CS | G | 3.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
● = Первый выбор ○ = Хороший выбор
