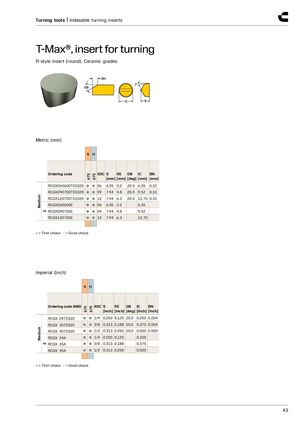

Turning tools | Indexable turning inserts T-Max®, insert for turning R-style insert (round). Ceramic grades Metric (mm) S H Ordering code SSC S RE GB IC BN 675 675 [mm] [mm] [deg] [mm] [mm] RCGX060600T01020 ● ● 06 6.35 3.2 20.0 6.35 0.10 RCGX090700T01020 ● ● 09 7.94 4.8 20.0 9.52 0.10 RCGX120700T01020 ● ● 12 Medium 7.94 6.3 20.0 12.70 0.10 RCGX060600E ● ● 06 6.35 3.2 6.35 RCGX090700E ● ● 09 7.94 4.8 9.52 E RCGX120700E ● ● 12 7.94 6.3 12.70 ● = First choice ○ = Good choice Imperial (inch) S H Ordering code ANSI SSC S RE GB IC BN 675 675 [inch] [inch] [deg] [inch] [inch] RCGX 24T0320 ● ● 1/4 0.250 0.125 20.0 0.250 0.004 RCGX 35T0320 ● ● 3/8 0.313 0.188 20.0 0.375 0.004 ● ● 1/2 0.313 0.250 20.0 0.500 0.004 Medium RCGX 45T0320 RCGX 24A ● ● 1/4 0.250 0.125 0.250 RCGX 35A ● ● 3/8 0.313 0.188 0.375 E RCGX 45A ● ● 1/2 0.313 0.250 0.500 ● = First choice ○ = Good choice 43
