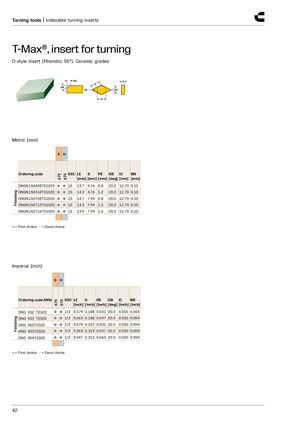

Turning tools | Indexable turning inserts T-Max®, insert for turning D-style insert (Rhombic 55°). Ceramic grades Metric (mm) S H Ordering code SSC LE S RE GB IC BN 675 675 [mm] [mm] [mm] [deg] [mm] [mm] DNGN150408T01020 ● ● 15 14.7 4.76 0.8 20.0 12.70 0.10 DNGN150412T01020 ● ● 15 14.3 4.76 1.2 20.0 12.70 0.10 Finishing DNGN150708T01020 ● ● 15 14.7 7.94 0.8 20.0 12.70 0.10 DNGN150712T01020 ● ● 15 14.3 7.94 1.2 20.0 12.70 0.10 DNGN150716T01020 ● ● 15 13.9 7.94 1.6 20.0 12.70 0.10 ● = First choice ○ = Good choice Imperial (inch) S H Ordering code ANSI SSC LE S RE GB IC BN 675 675 [inch] [inch] [inch] [deg] [inch] [inch] DNG 432 T0320 ● ● 1/2 0.579 0.188 0.031 20.0 0.500 0.004 ● ● 1/2 0.563 0.188 0.047 20.0 0.500 0.004 Finishing DNG 433 T0320 DNG 452T0320 ● ● 1/2 0.579 0.313 0.031 20.0 0.500 0.004 DNG 453T0320 ● ● 1/2 0.563 0.313 0.047 20.0 0.500 0.004 DNG 454T0320 ● ● 1/2 0.547 0.313 0.063 20.0 0.500 0.004 ● = First choice ○ = Good choice 42
