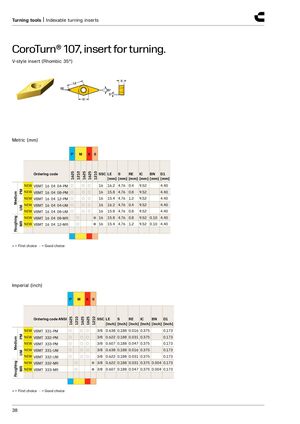

Turning tools | Indexable turning inserts CoroTurn® 107, insert for turning. V-style insert (Rhombic 35°) Metric (mm) P M K S 1625 1210 1625 1625 1210 Ordering code SSC LE S RE IC BN D1 [mm] [mm] [mm] [mm] [mm] [mm] NEW VBMT 16 04 04-PM ○ ○○ 16 16.2 4.76 0.4 9.52 4.40 ○ ○○ PM NEW VBMT 16 04 08-PM 16 15.8 4.76 0.8 9.52 4.40 Medium NEW VBMT 16 04 12-PM ○ ○○ 16 15.4 4.76 1.2 9.52 4.40 NEW VBMT 16 04 04-UM ○ ○○ 16 16.2 4.76 0.4 9.52 4.40 UM NEW VBMT 16 04 08-UM ○ ○○ 16 15.8 4.76 0.8 9.52 4.40 ○ ● 16 15.8 4.76 0.8 9.52 0.10 4.40 Roughing NEW VBMT 16 04 08-MR ○ ● 16 MR NEW VBMT 16 04 12-MR 15.4 4.76 1.2 9.52 0.10 4.40 ● = First choice ○ = Good choice Imperial (inch) P M K S 1625 1210 1625 1625 1210 Ordering code ANSI SSC LE S RE IC BN D1 [inch] [inch] [inch] [inch] [inch] [inch] NEW VBMT 331-PM ○ ○○ 3/8 0.638 0.188 0.016 0.375 0.173 ○ ○○ PM NEW VBMT 332-PM 3/8 0.622 0.188 0.031 0.375 0.173 Medium NEW VBMT 333-PM ○ ○○ 3/8 0.607 0.188 0.047 0.375 0.173 NEW VBMT 331-UM ○ ○○ 3/8 0.638 0.188 0.016 0.375 0.173 UM NEW VBMT 332-UM ○ ○○ 3/8 0.622 0.188 0.031 0.375 0.173 ○ ● 3/8 0.622 0.188 0.031 0.375 0.004 0.173 Roughing NEW VBMT 332-MR ○ ● 3/8 0.607 0.188 0.047 0.375 0.004 0.173 MR NEW VBMT 333-MR ● = First choice ○ = Good choice 38
