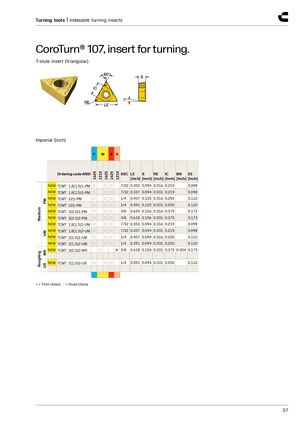

Turning tools | Indexable turning inserts CoroTurn® 107, insert for turning. T-style insert (triangular) Imperial (inch) P M K S 1625 1210 1625 1625 1210 Ordering code ANSI SSC LE S RE IC BN D1 [inch] [inch] [inch] [inch] [inch] [inch] NEW TCMT 1.8(1.5)1-PM ○ ○○ 7/32 0.353 0.094 0.016 0.219 0.098 NEW TCMT 1.8(1.5)2-PM ○ ○○ 7/32 0.337 0.094 0.031 0.219 0.098 NEW TCMT 221-PM ○ ○○ 1/4 0.407 0.125 0.016 0.250 0.110 PM NEW TCMT 222-PM ○ ○○ 1/4 0.391 0.125 0.031 0.250 0.110 NEW TCMT 3(2.5)1-PM ○ ○○ Medium 3/8 0.634 0.156 0.016 0.375 0.173 NEW TCMT 3(2.5)2-PM ○ ○○ 3/8 0.618 0.156 0.031 0.375 0.173 NEW TCMT 1.8(1.5)1-UM ○ ○○ 7/32 0.353 0.094 0.016 0.219 0.098 NEW TCMT 1.8(1.5)2-UM ○ ○○ 7/32 0.337 0.094 0.031 0.219 0.098 UM NEW TCMT 2(1.5)1-UM ○ ○○ 1/4 0.407 0.094 0.016 0.250 0.110 NEW TCMT 2(1.5)2-UM ○ ○○ 1/4 0.391 0.094 0.031 0.250 0.110 NEW TCMT 3(2.5)2-MR ○ ● 3/8 0.618 0.156 0.031 0.375 0.004 0.173 MR Roughing NEW TCMT 2(1.5)2-UR ○ ○○ 1/4 0.391 0.094 0.031 0.250 0.110 UR ● = First choice ○ = Good choice 37
